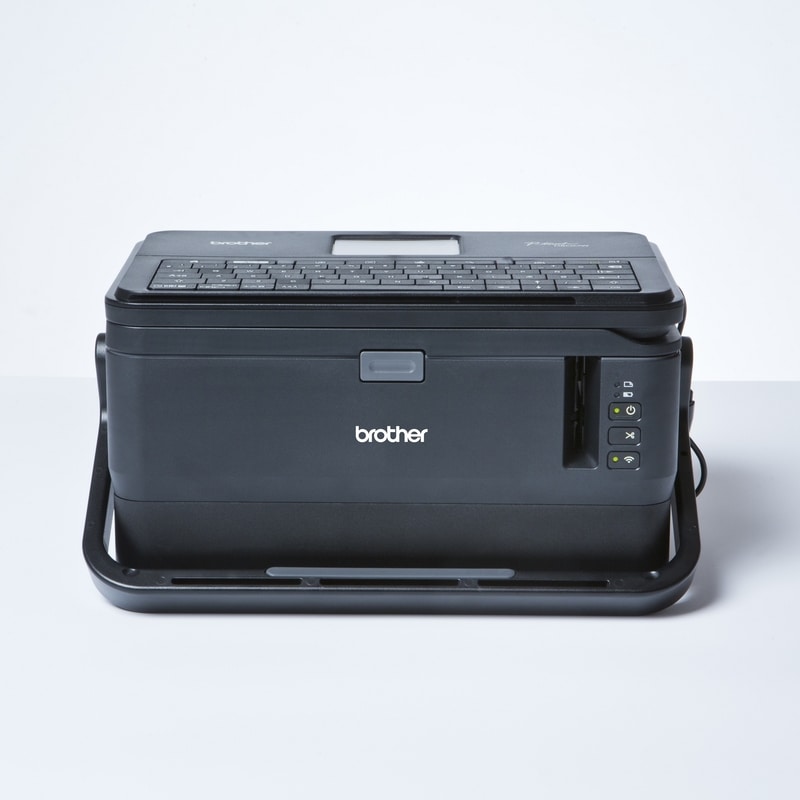

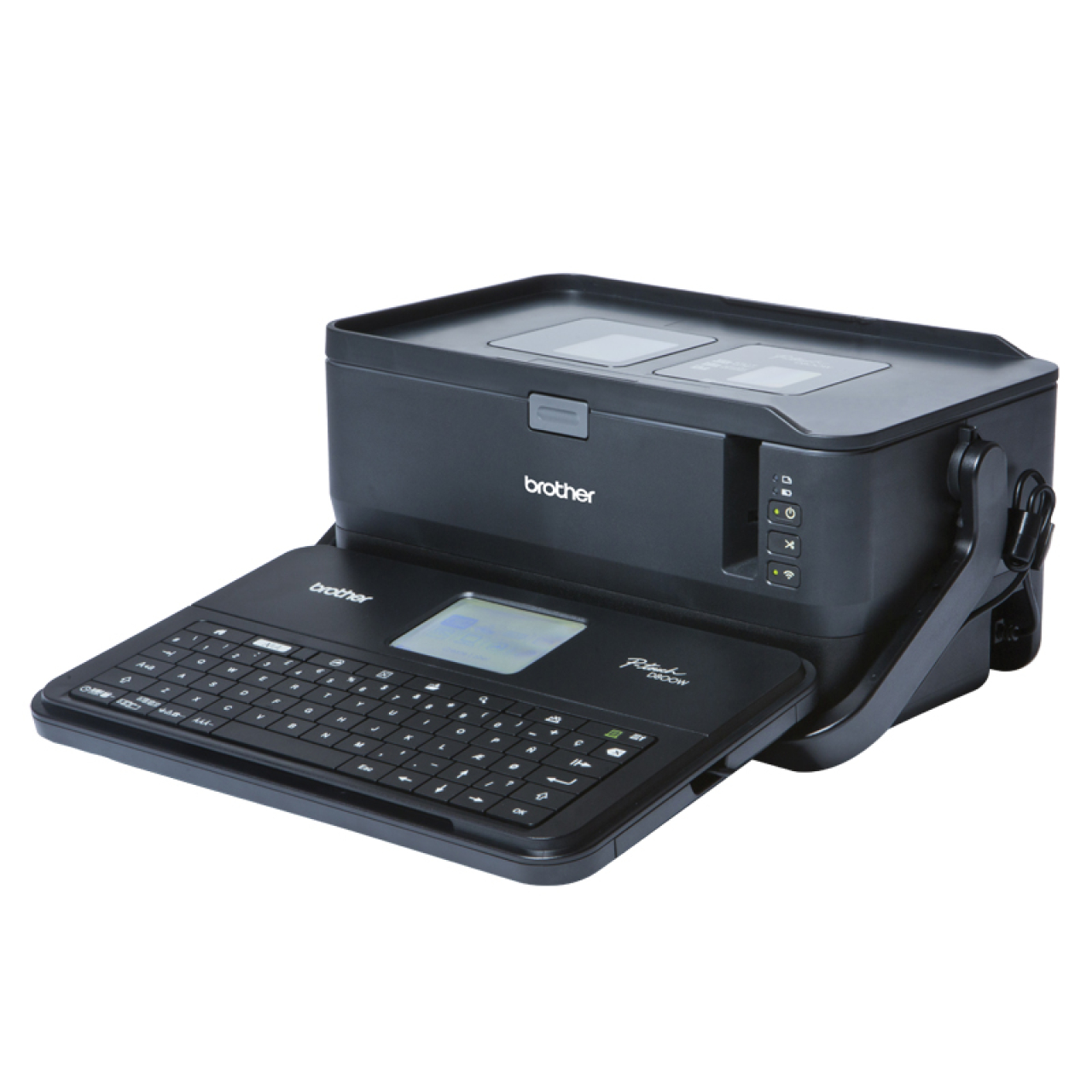

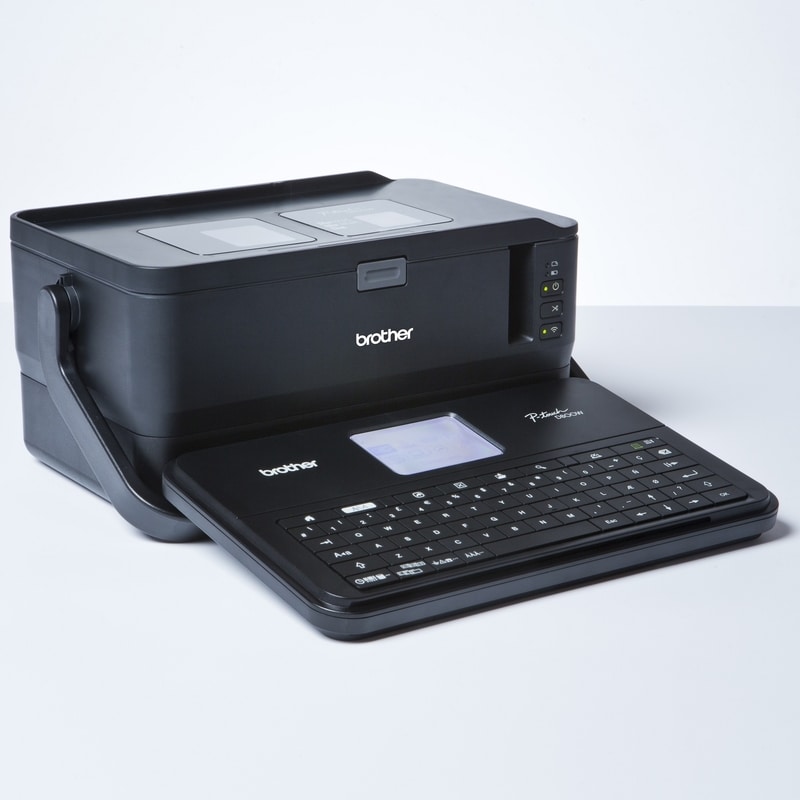

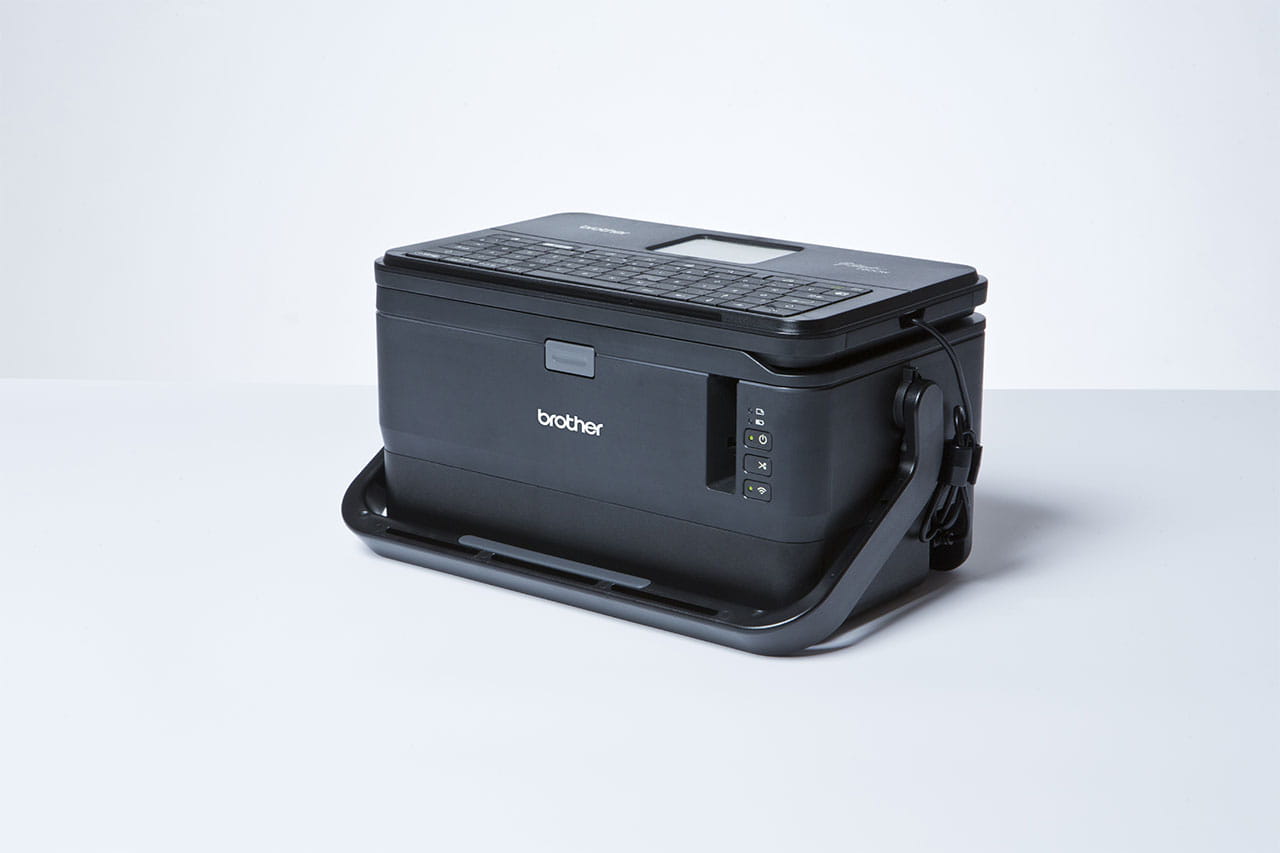

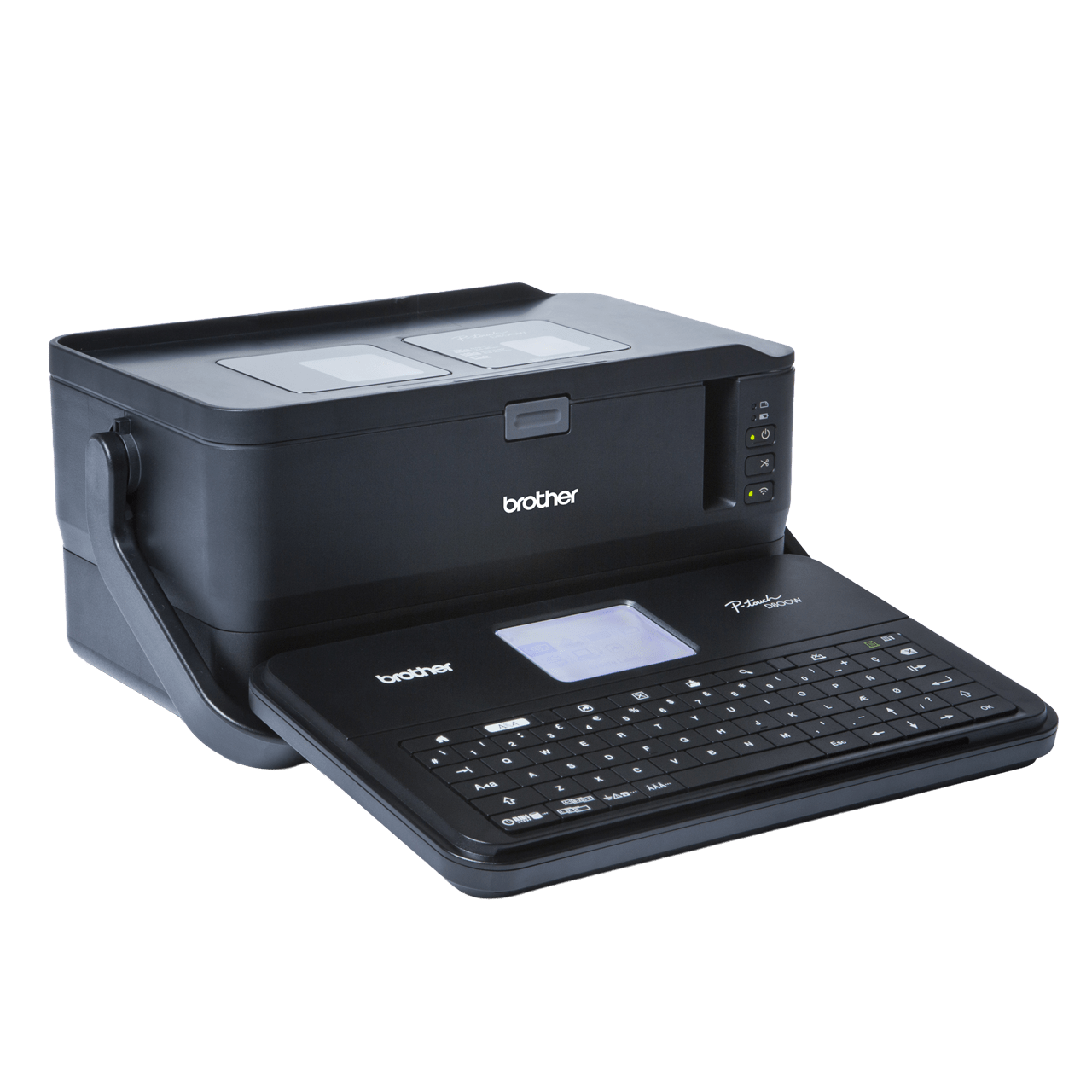

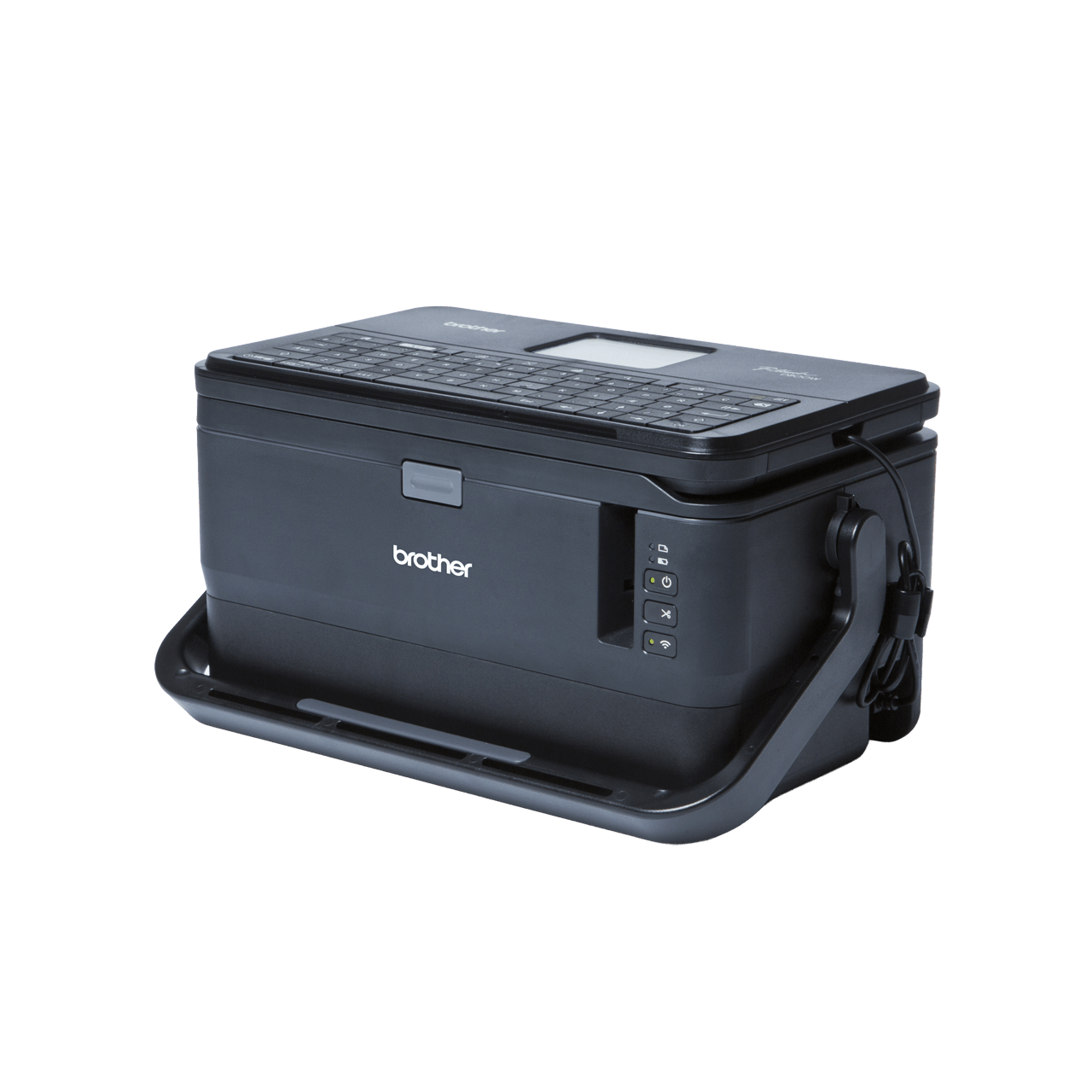

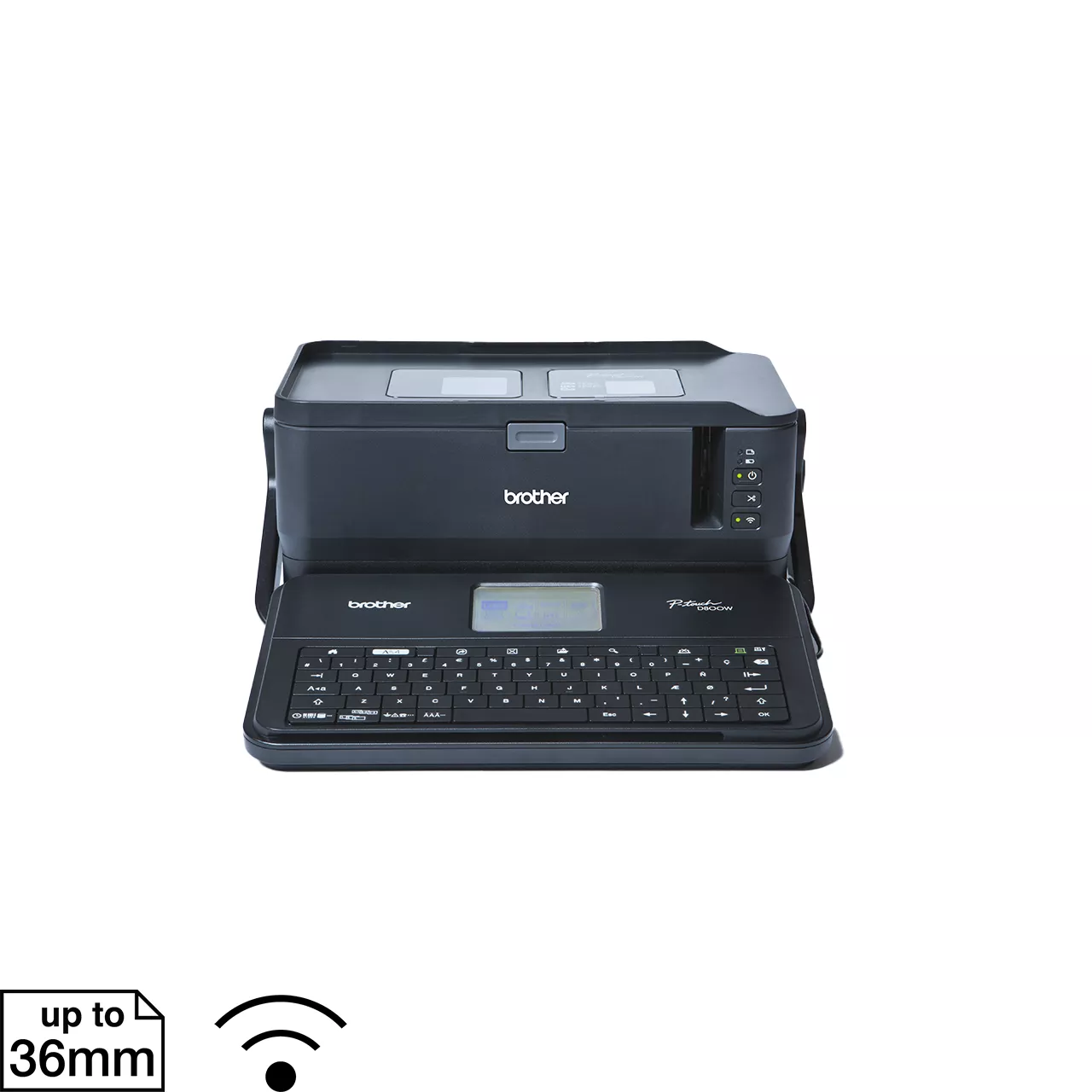

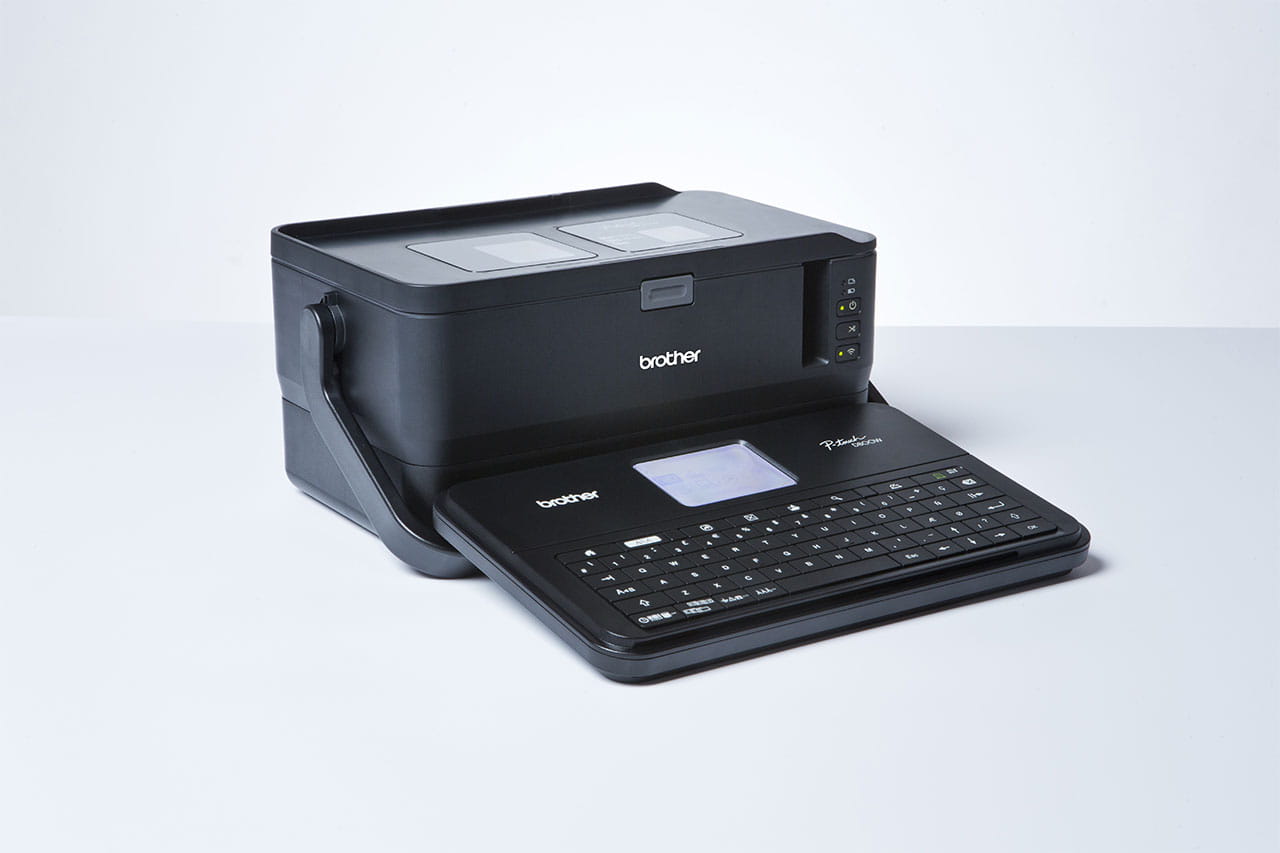

Portable or Desktop P-Touch Labeller
- 360 dpi print resolution for crisp text, images and barcodes
- High-speed printing of up to 60 mm/second

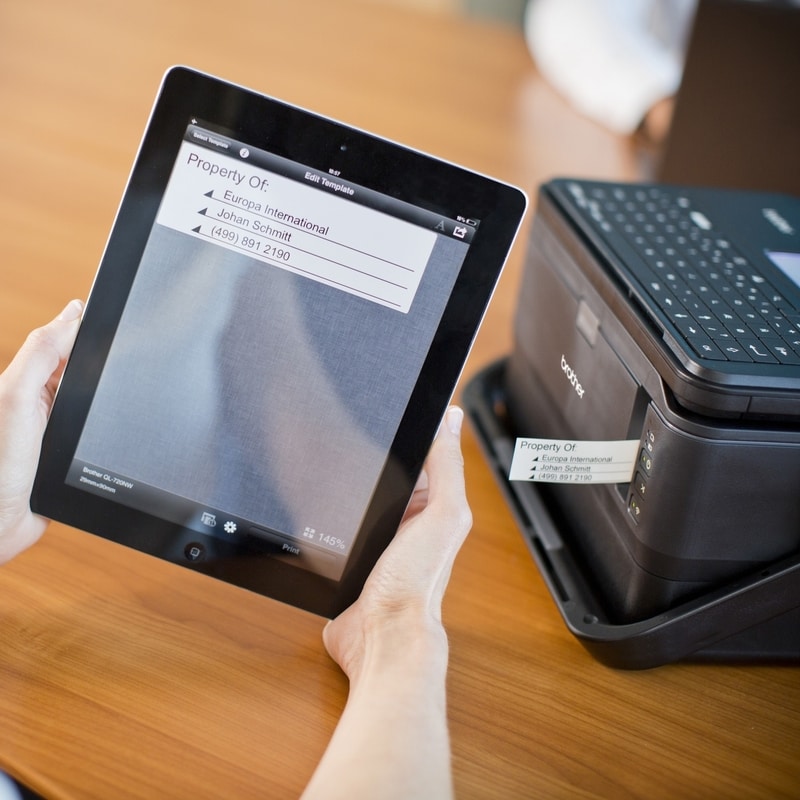

- USB and Wi-Fi connectivity

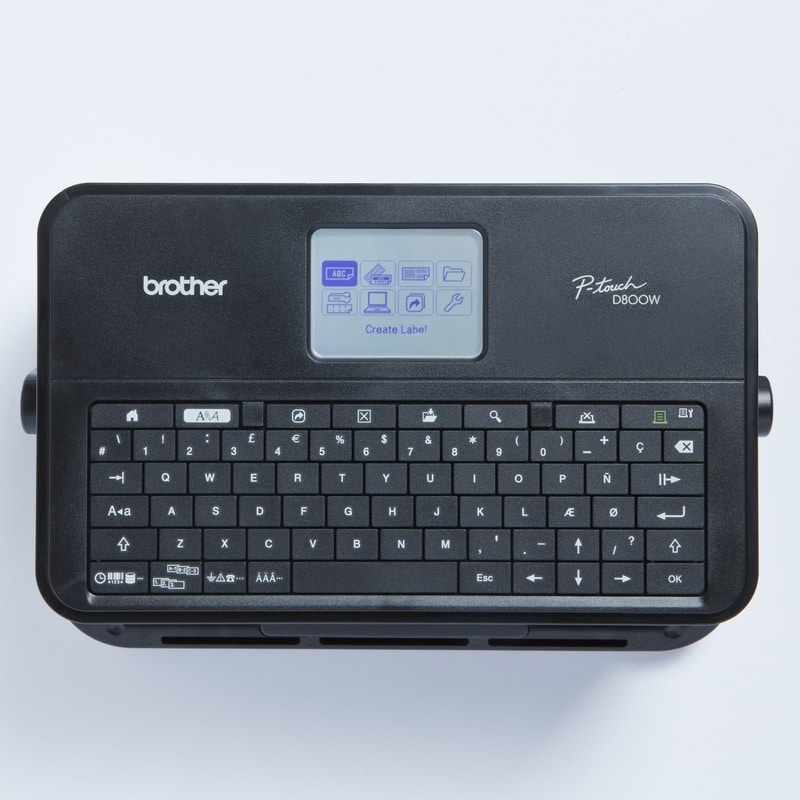

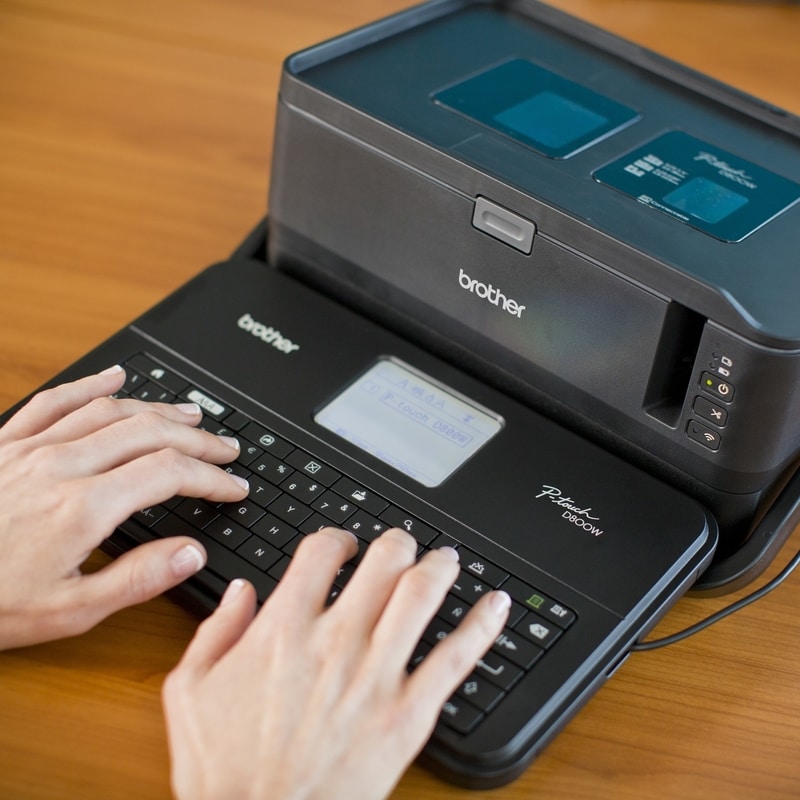

- Professional laptop-style keyboard for easy and fast typing
- Use the convenient 16 built-in fonts, 140 decorative frames and 800 symbols for customised labels
- Store up to 70 label templates
Information
Overview
Specifications
Basic Specs
Keyboard
QWERTY
Display Type
LCD 17 Characters x 4 lines
Media Type

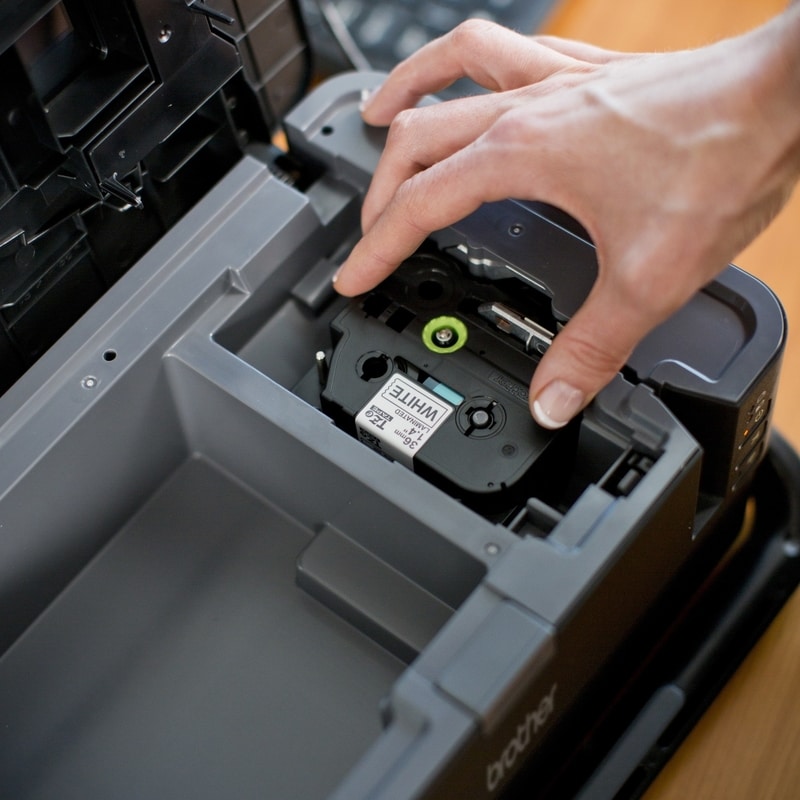

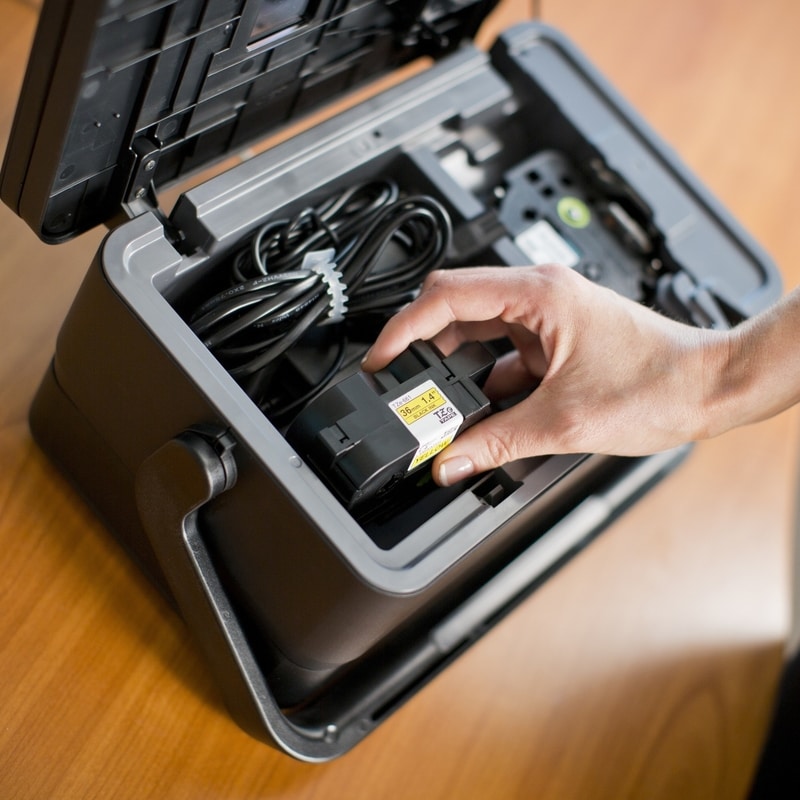

TZe tapes, & HSe Heat Shrink Tubes
Available Tape Widths

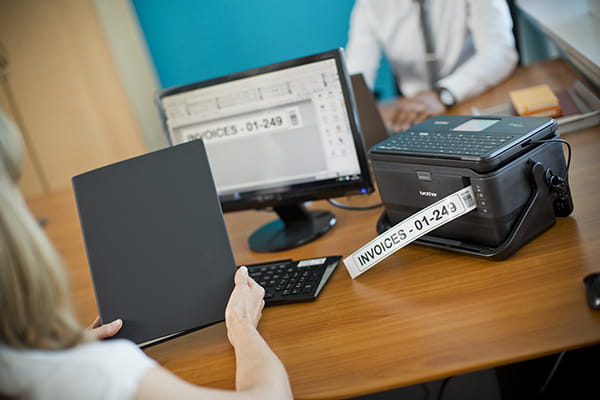

3.5, 6, 9, 12, 18, 24, 36 mm
Product Dimensions (Width X Depth X Height)
338 mm × 188 mm × 173 mm
Weight
3.3 kg
Print Speed
60mm/sec
Resolution
360 dpi
No. Of Printable Lines
17
Number of Characters
673
Number of Symbols
465
Barcode
1. CODE39 2. ITF 2/5 3. EAN13 4. EAN8 5. UPC-A 6. UPC-E 7. CODABAR 8. GS1-128 (UCC/EAN128) 9. CODE128 2D barcodes only for transferred templates; 10. RSS-14 (Standard, Truncated, Stacked, StackedOmni) 11. RSS-Limited 12. RSS Expanded (Standard, Stacked) 2D barcodes only for transferred templates; 1. QR Code 2. PDF417 3. Data Matrix 4. AztecCode
Numbering
Yes (1-99)
Connectivity
Connectivity
USB, Wireless LAN
Media
Maximum Tape Width
Up to 36 mm
Functions
Cutter
Auto
Multi Block Printing
198 blocks
Copy Printing
Yes (1-99)
Mirror Printing
Yes
Preview
Yes
Memory
File Storage
99 file slots (up to 2000 per file, up to 40000 in total)
Memory Buffer Size
1500 Characters per label
Power
Power Source
AC Adapter (Included) ; Li-Ion battery (PA-BT-4000Li) and battery base (PA-BB-003) Optional
Auto Power-Off
Yes
Supported Operating Systems
Supported OS
Windows Vista, 7, 8, 8.1, 10, Server 2008/2008 R2/2012/2012 R2
