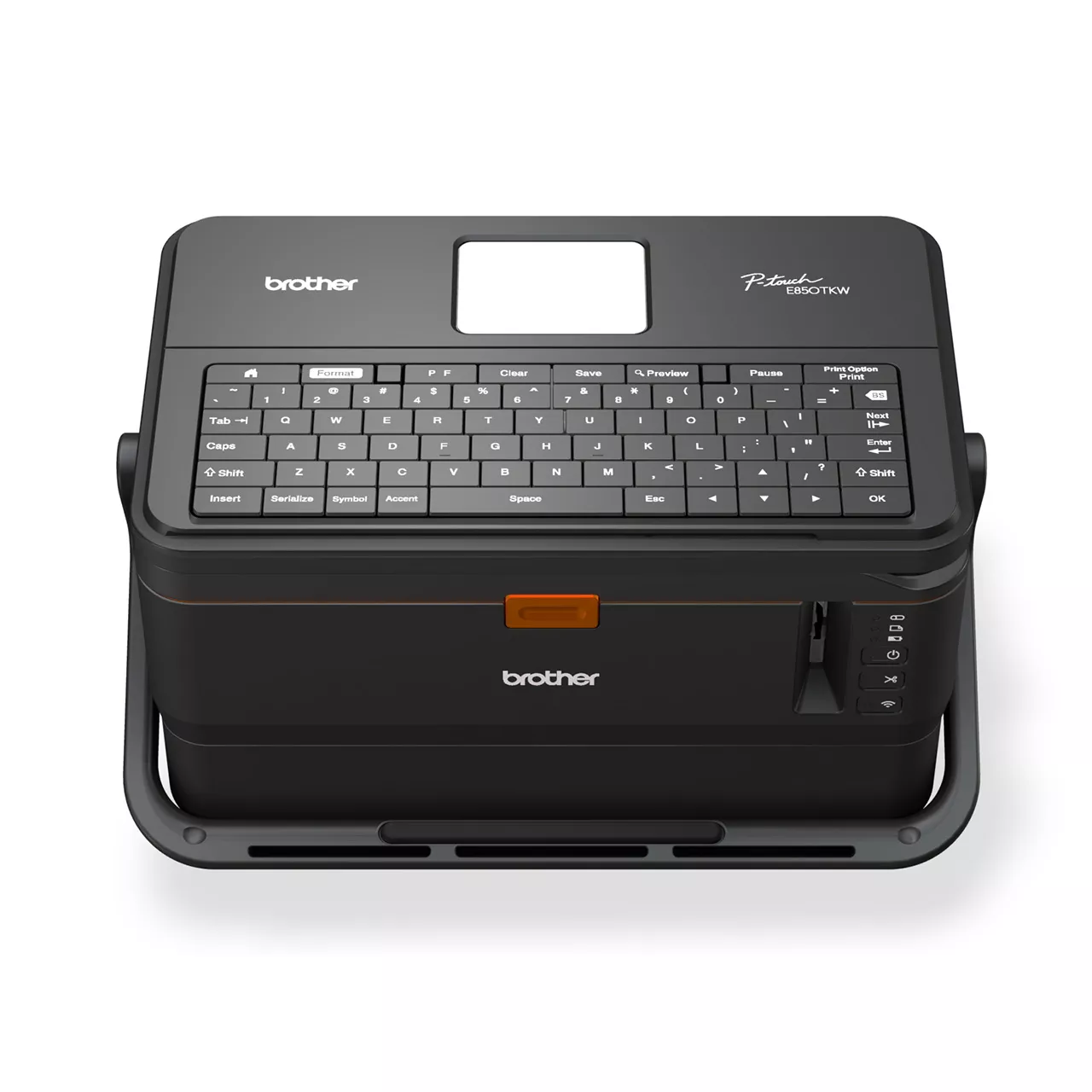

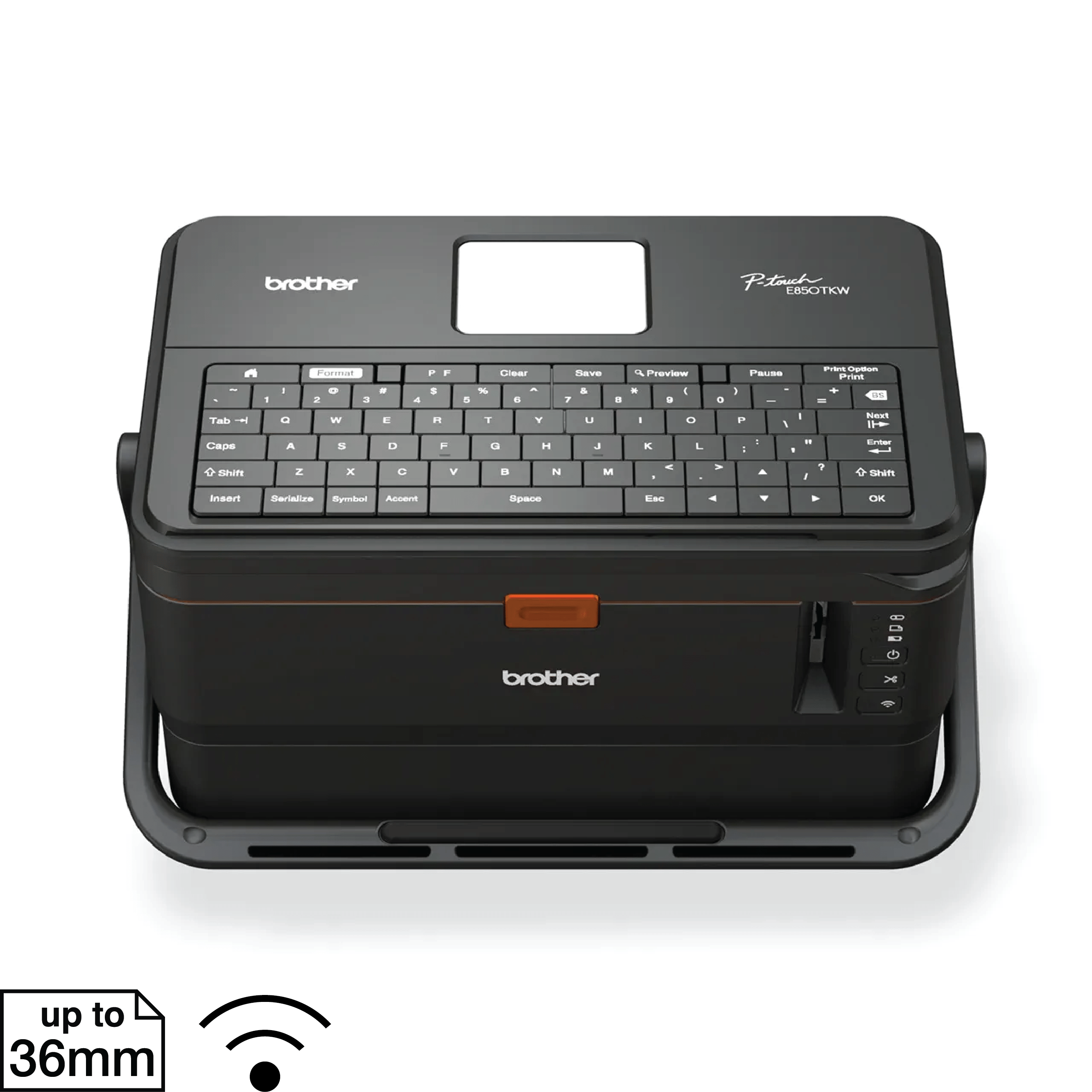

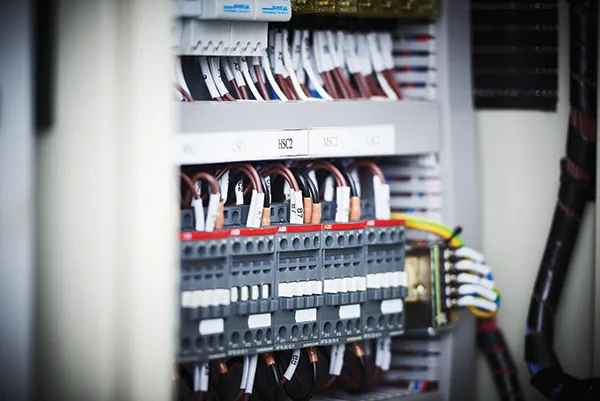

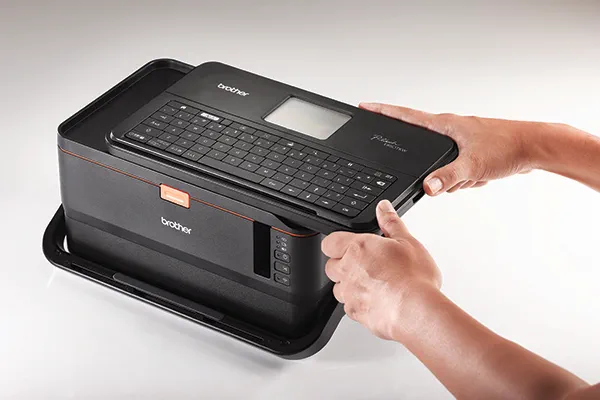

Industrial tube and label printer designed to meet the diverse needs of electricians
HK$7,998.00

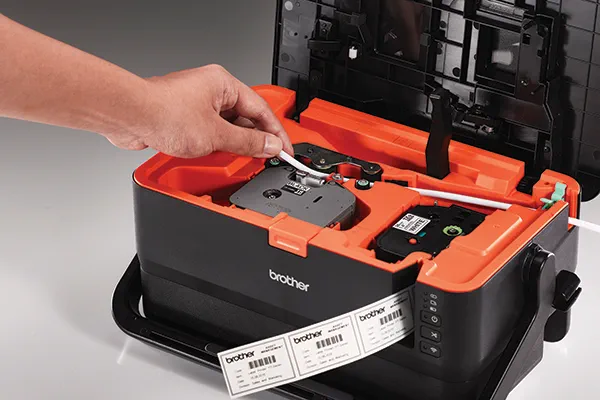

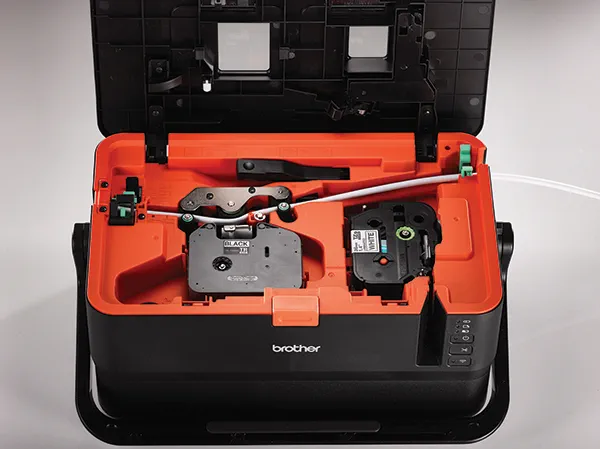

- Dual print heads, capable of printing label tapes and PVC sleeves at the same time
- LCD Screen & Traditional Keyboard & PC PC Connectable
- With Wi-Fi and support
- Choose from 3.5, 6, 9, 12, 18, 24, 36 mm label width TZe Tape and HSE Heat Shrink Tubing
- Fast Print Speed: Heat Shrink Tubing 40mm/s, Tape: 60mm/s
Information
Overview
Specifications
Basic Specs
Keyboard
QWERTY
Media Type
TZe Laminated Tape, HGe Laminated Tape, HSe Heat Shrink Tube
Available Tape Widths
TZe: 3.5, 6, 9, 12, 18, 24, 36mm, HGe: 6, 9, 12, 18, 24, 36mm, HSe: 5.8, 8.8, 11.7, 17.7, 23.6mm
Product Dimensions (Width X Depth X Height)
338 mm × 188 mm × 173 mm
Weight
4.6 kg
Print Speed
Tube printing: 40mm/sec
Label printing: 60mm/sec
Resolution
360 dpi
No. Of Printable Lines
Tube: 2 lines
Label: 17 lines
Number of Characters
826
Number of Symbols
465
Barcode

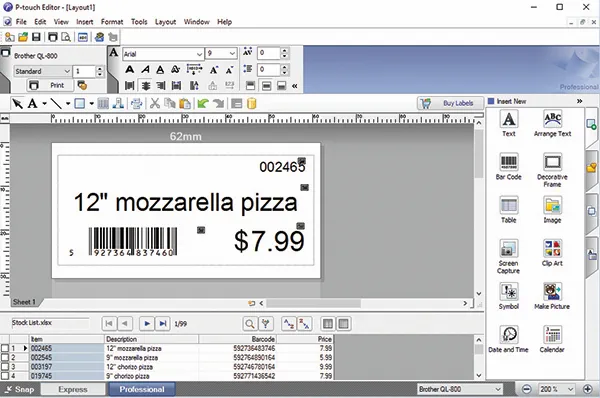

22 barcode protocols on P-touch Editor 5.1
Connectivity
Connectivity
USB 2.0 Full Speed, IEEE 802.11b/g/n (Wireless LAN - Infrastructure Mode), IEEE 802.11b (Wireless LAN - Ad-hoc Mode), IEEE 802.11n (Wireless Direct), WPS (Wi-Fi Protected Setup) 2.0
Functions
Cutter
Auto and half cutter
Mirror Printing
Yes
Memory
File Storage
99 files
Memory Buffer Size
up to 40,000 chrs
Power
Power Source
AC adapter (AD9100ESA): 24 V AC 100-240 V 50/60 Hz,
Battery: Li-ion Battery (PA-BT-4000LI): 14.4 V
Auto Power-Off
Li-ion Battery (PA-BT-4000LI): 30 min
