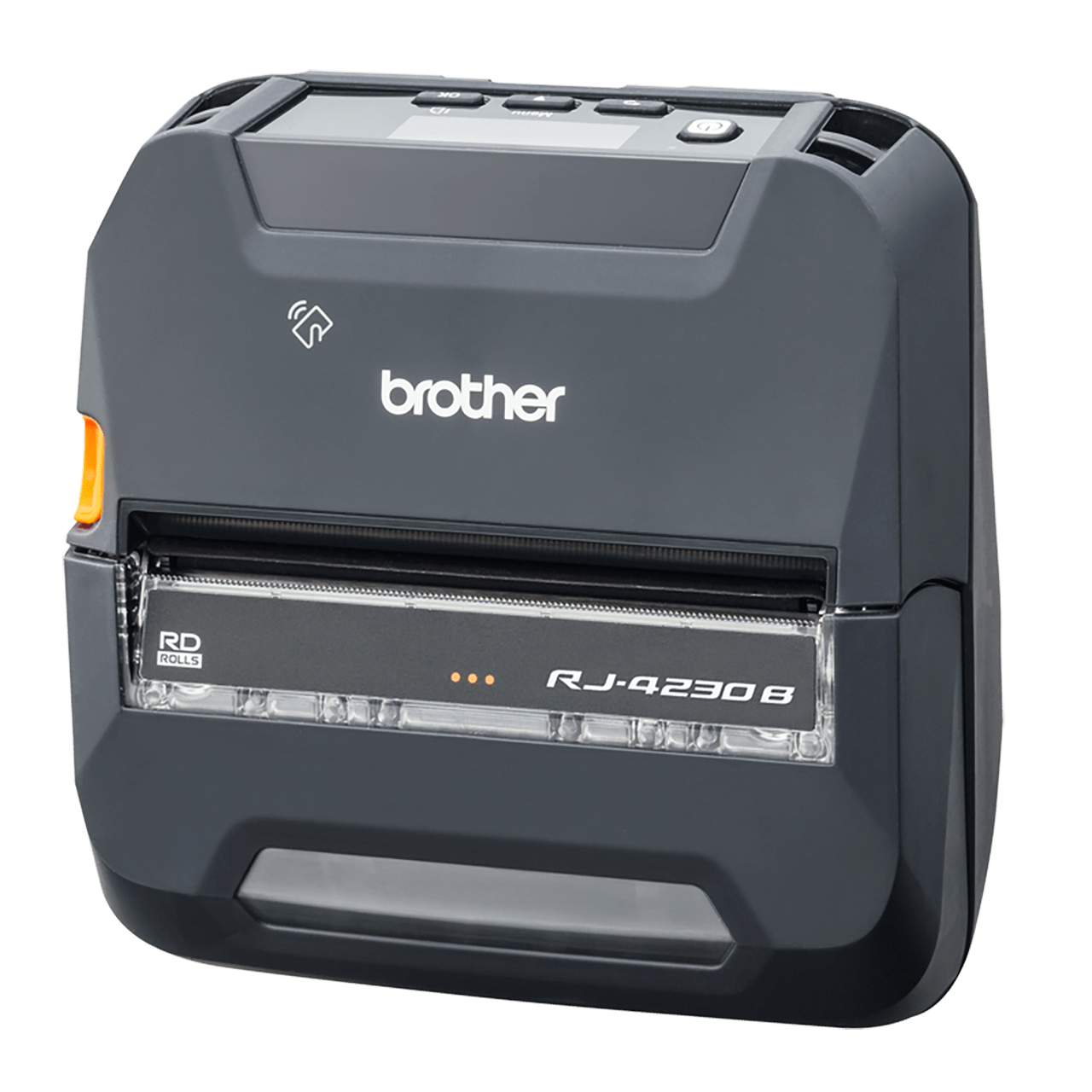

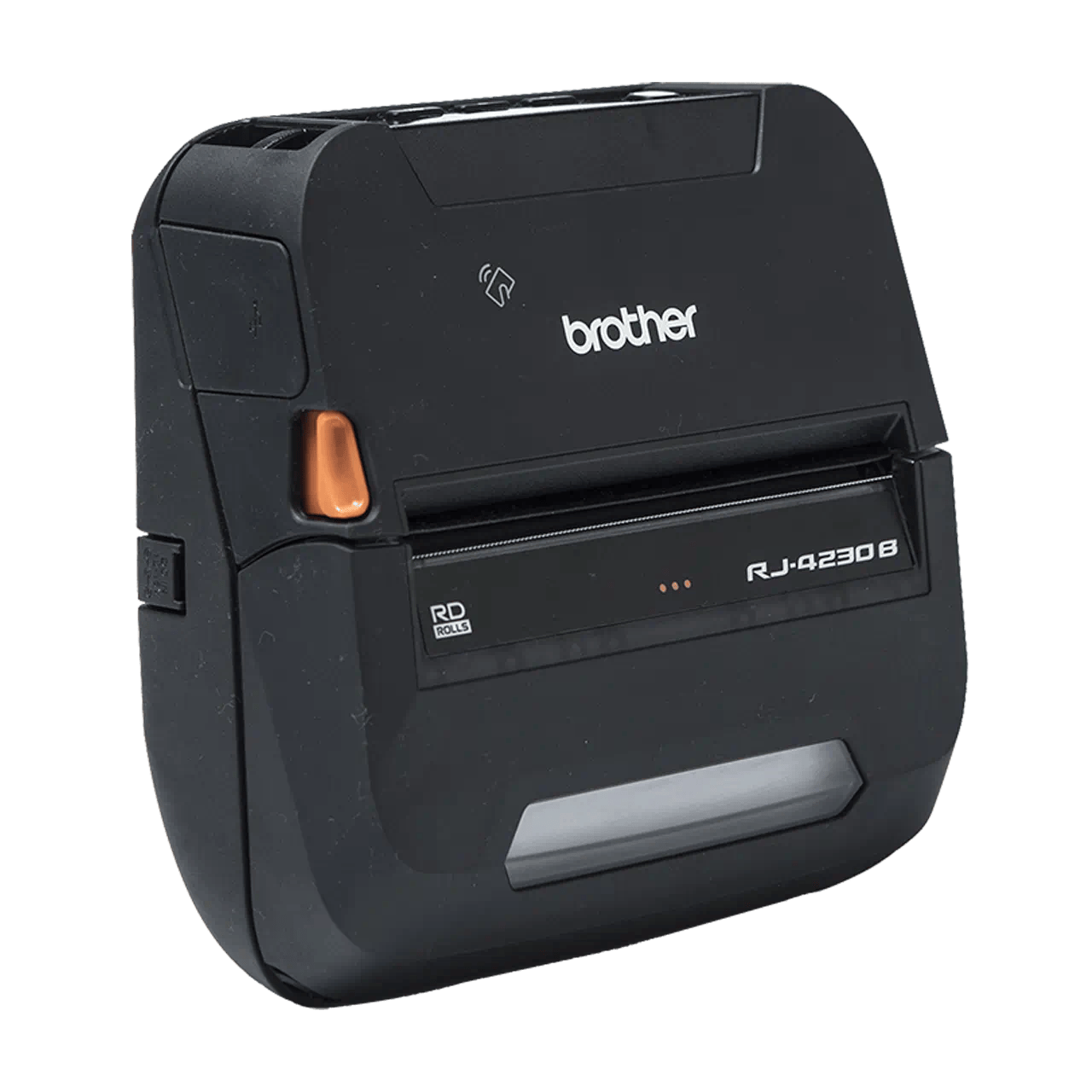

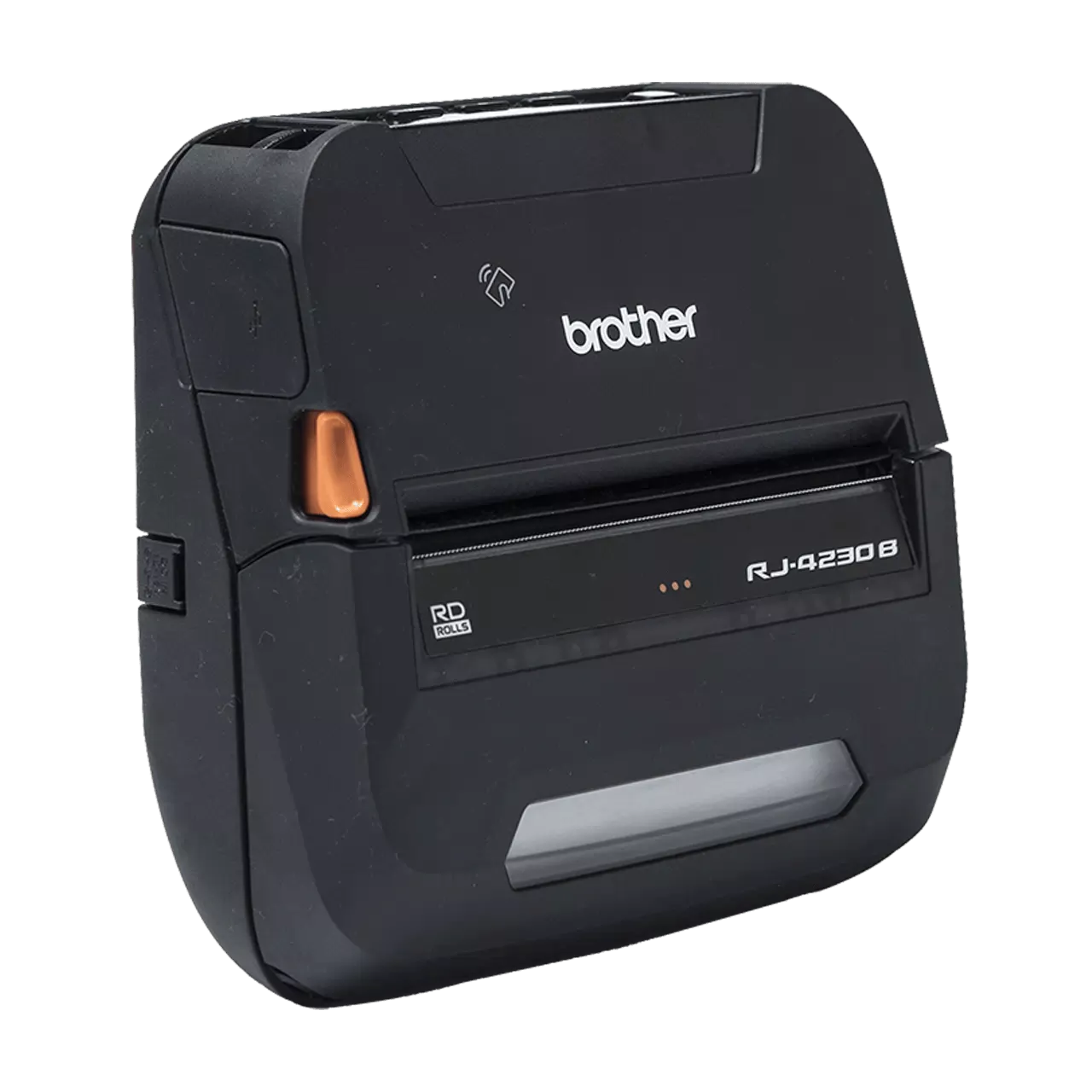

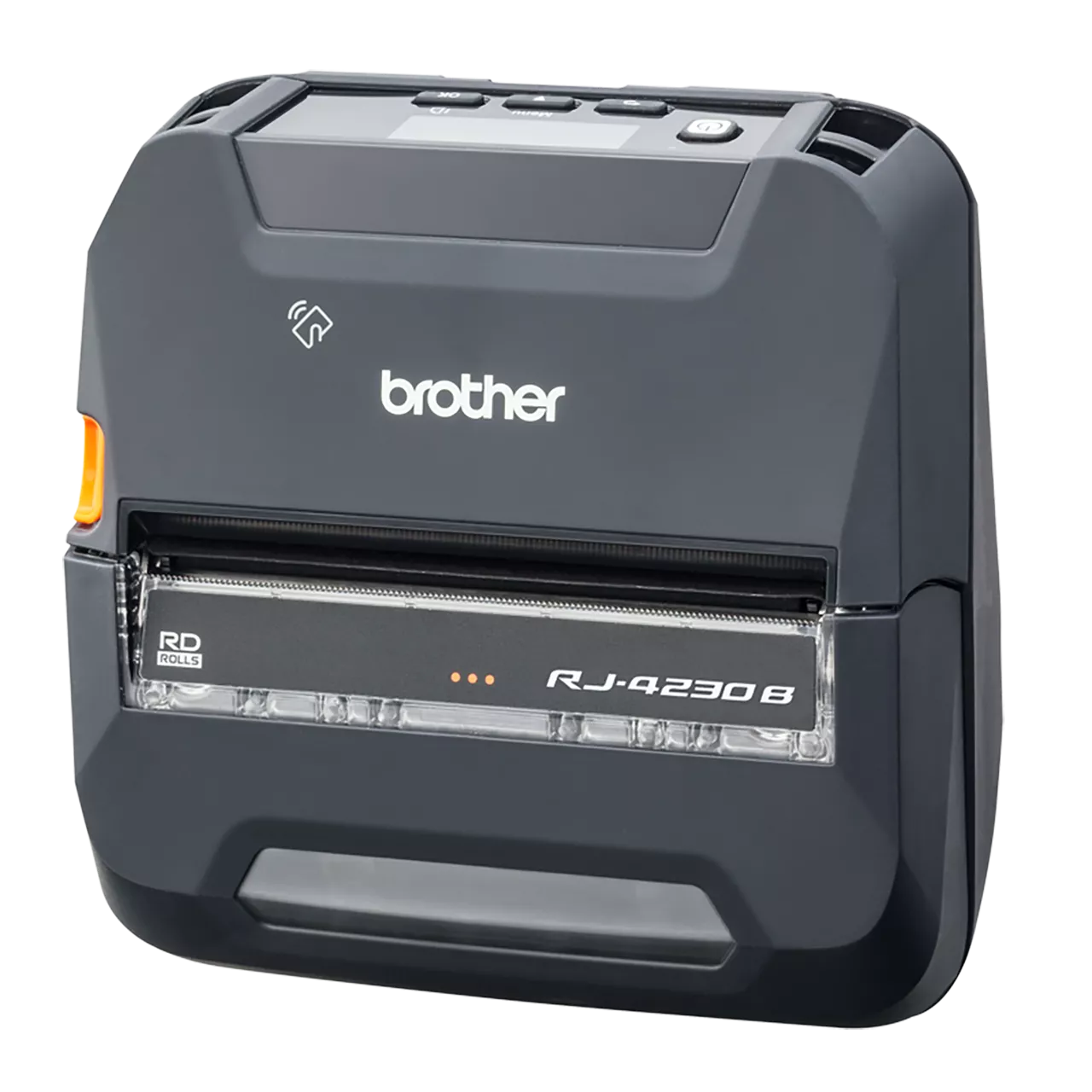

Direct Thermal Print Technology for truly rugged solution
HK$5,568.00
- 2m Drop Protection
- Max. 113mm roll width
- Fast Print Speed 127mm per second
- Delivered with Li-ion rechargeable battery PABT006 and AC adaptor PAAD600
- Can Print Receipt or Label in one printer
- USB/ WiFi/ Bluetooth
**Battery PABT006 and AC adaptor PAAD600 are not included (need to be additional purchased)**
Information
Overview
Specifications
Basic Specs
Functions
Printer Type
Portable Printer
Product Dimensions (Width X Depth X Height)
153 mm × 159 mm × 68 mm
Weight
850 g
Print Speed
Max: 5ips or 127 mm/sec (under Brother standard environment)
Sealing
IP54
Maximum Paper Capacity
Non-coatd Thermal paper, Coated thermal paper, Direct Thermal die cut labels
Warranty
HK Region / Macau Region 1 year bring-in warranty service
Resolution
203 dpi

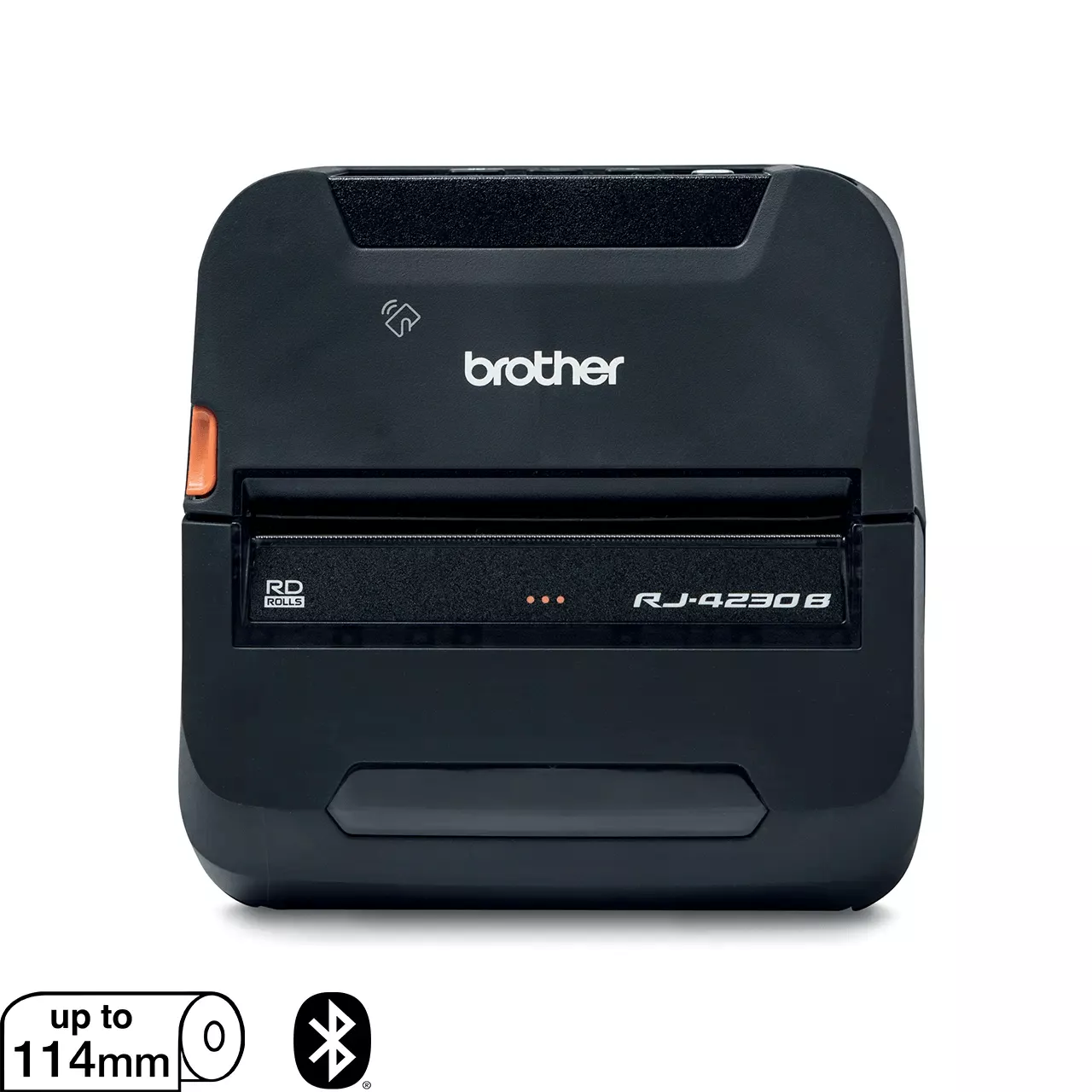

Printing Width
Up to 114 mm
Barcode
Linear: Code39, Code93, Code128, EAN-8, EAN-13, UPC-A, UPC-E, UPC and EAN extensionv, Intlv 2 of 5, CODABAR, Postnet, GS1 Databar（RSS14、RSS14 Stacked、RSS14 Truncation、RSS14 Stacked Omnidirection, GS1 Databar (RSS Limited), GS1 Databar（RSS Expanded、RSS Expanded Stacked), GS1-128(UCC/EAN 128), GS1 Databar（RSS14、RSS14 Stacked、RSS14 Truncation、RSS14 Stacked Omnidirection), MSI/Plessey, Inteligent Mail Barcode
2D: QR Code(Model 1, Model 2, Micro QR), MaxiCode, PDF417(Standard, Truncate), MicroPDF417, DataMatrix(Square, Rectangular), AztecCode
Connectivity
Connectivity
USB version 2.0
Display & Memory
Display Type
Mono LCD
Memory Capacity
Ram: 256 MB, Flash: 64 MB
Operation
Temperature Operating
-20°C to 55°C
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, ZPL emulation, CPCL emulation(CPCL page print mode / CPCL line print mode)
Supported Operating Systems
Supported OS
Windows Vista / 7 / 7 / 8.1 /10
