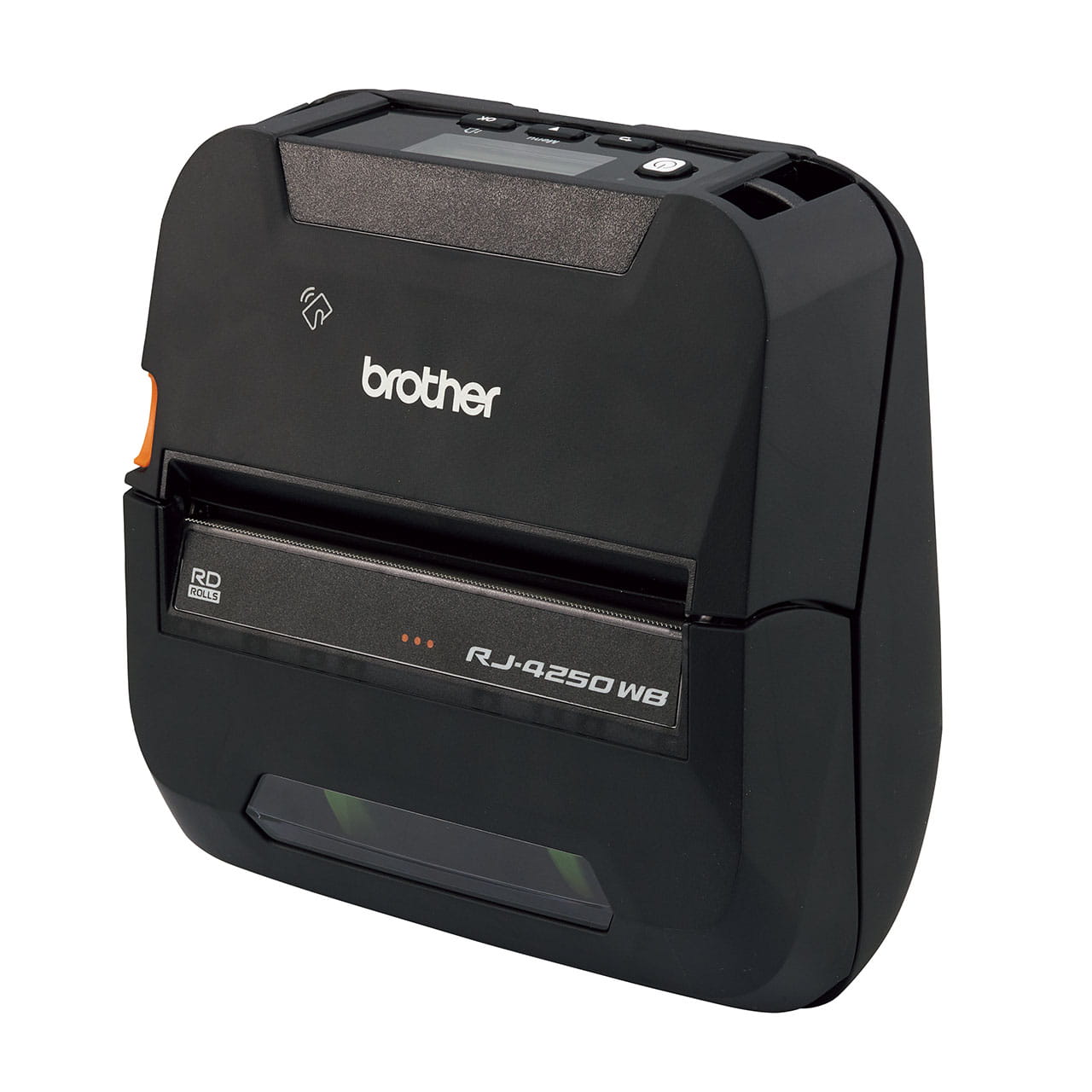

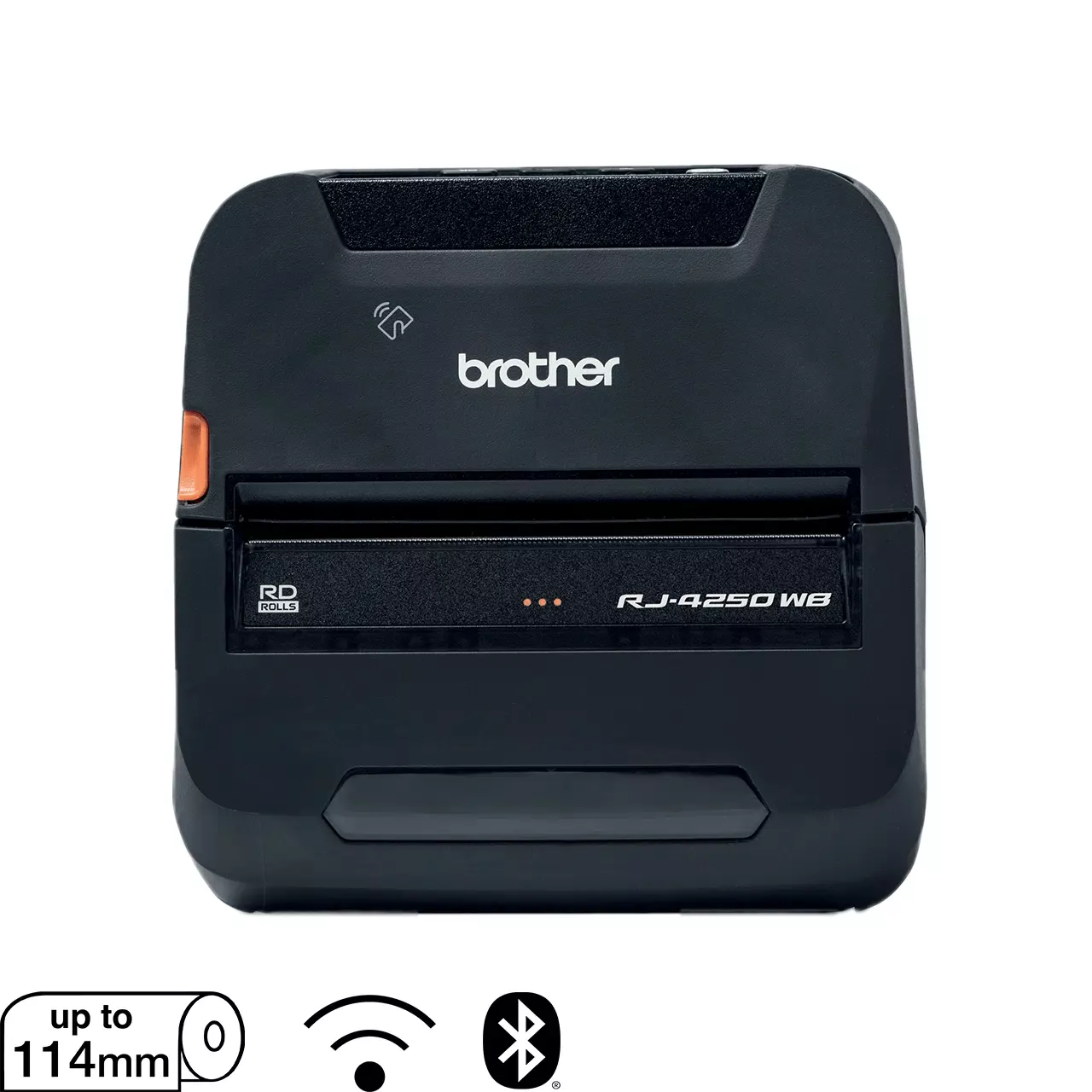

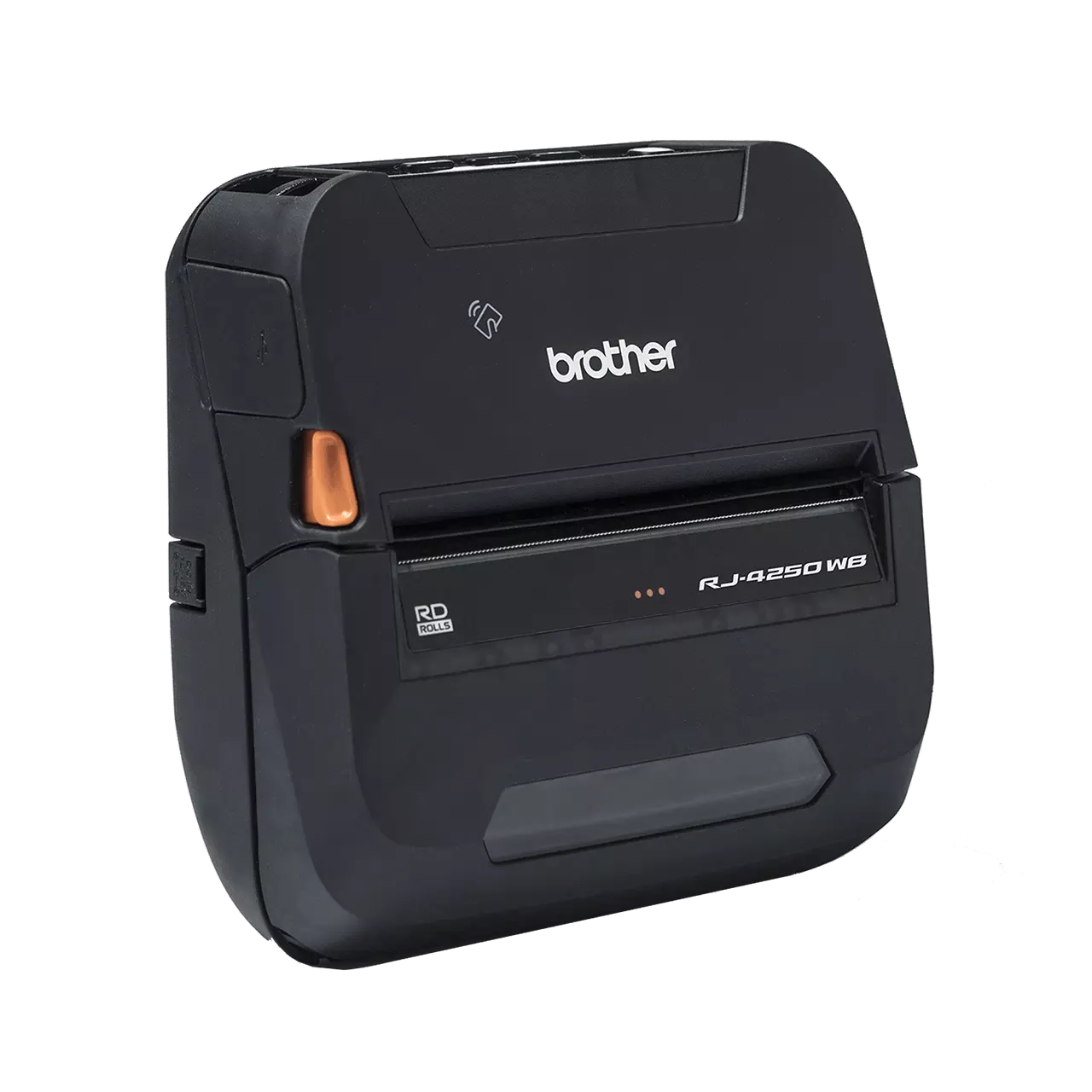

Direct Thermal Print Technology for truly rugged solution
HK$6,618.00
- 2m Drop Protection
- Max. 113mm roll width
- Fast Print Speed 127mm per second
- USB/ WiFi/ Bluetooth/ AirPrint/ MFi
- Can Print Receipt or Label in one printer
**Battery PABT006 and AC adaptor PAAD600 are not included (need to be additional purchased)**
Information
Overview
Specifications
Basic Specs
Functions
Printer Type
Portable Printer
Product Dimensions (Width X Depth X Height)
153 mm × 159 mm × 68 mm
Weight
850 g
Print Speed
Max. 5ips (127 mm/sec)
Sealing
IP54
Warranty
HK Region / Macau Region 1 year bring-in warranty service
Resolution
203 dpi x 203 dpi
Printing Width
104 mm
Barcode
Linear: Code39, Code93, Code128, EAN-8, EAN-13, UPC-A, UPC-E, UPC and EAN extensionv, Intlv 2 of 5, CODABAR, Postnet, GS1 Databar（RSS14、RSS14 Stacked、RSS14 Truncation、RSS14 Stacked Omnidirection, GS1 Databar (RSS Limited), GS1 Databar（RSS Expanded、RSS Expanded Stacked), GS1-128(UCC/EAN 128), GS1 Databar（RSS14、RSS14 Stacked、RSS14 Truncation、RSS14 Stacked Omnidirection), MSI/Plessey, Inteligent Mail Barcode
2D: QR Code(Model 1, Model 2, Micro QR), MaxiCode, PDF417(Standard, Truncate), MicroPDF417, DataMatrix(Square, Rectangular), AztecCode
Connectivity
Connectivity
USB version 2.0 (Full Speed) (mini-B), Wireless LAN IEEE 802.11a/b/g/n (Infrastructure Mode), Wireless LAN IEEE 802.11g/n (Wireless Direct Mode), NFC (Passive only)
Display & Memory
Display Type
Mono LCD with Back light
Memory Capacity
RAM: 256 MB
FLASH: 64 MB (User area 42 MB)
Operation
Power Source
AC adapter (Optional): 15 V
Car adapter (Optional): 12 V (DC)
Temperature Operating
AC adapter: -10ºC to 40ºC
Car adapter: -10ºC to 50ºC
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, ZPL emulation, CPCL emulation(CPCL page print mode / CPCL line print mode)
Supported Operating Systems
Supported OS
Windows 7, Windows 8, Windows 8.1, Windows 10, Windows Server 2008/2008R2, Windows Server 2012/2012 R2/2016
Network
Wireless Network Security
Authentic method (encryption scheme) *Infrastructure mode; Open system(None/WEP64/WEP128); Common key authentication (WEP); WPA/WPA2-PSK (TKIP+AES), EAP-FAST (TKIP/AES), PEAP (TKIP/AES) *3, EAP-TLS (TKIP/AES),EAP-TTLS (TKIP/AES); Authentic ethod (encryption scheme); *Wireless direct mode; WPA2-PSK (AES)
