MFC-L9630CDN 4 in 1 Multifunction Colour Laser Printer
HK$11,688.00
Auto 2-sided Duplex Printing with optional WiFi module ( Need additional purchase)
HK$11,688.00
- A4 print speed up to 40 ppm (Black/Colour)
- Auto 2-sided (Duplex) printing, 100 sheets Auto-Document Feeder (ADF)
- Compatible with Mobile Connect app
- AirPrint, Mopria, LAN, NFC connectivity, USB 2.0
- Full capacity toner included. Yield up to 9,000 pages (black) / 6,500 pages (colour)*
- 7.0" Colour Touchscreen LCD
Information
Overview

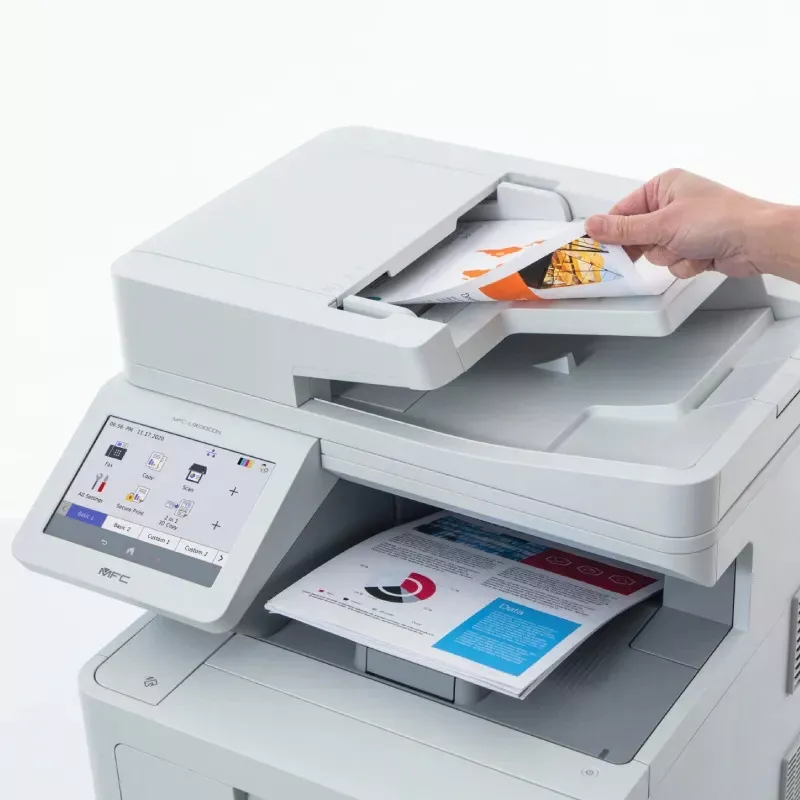

FASTEST IN ITS CLASS*
The MFC-L9630CDN helps you to stay productive with the fastest print speeds in its class with up to 40 pages per minute.
HIGH VOLUME PRINTING

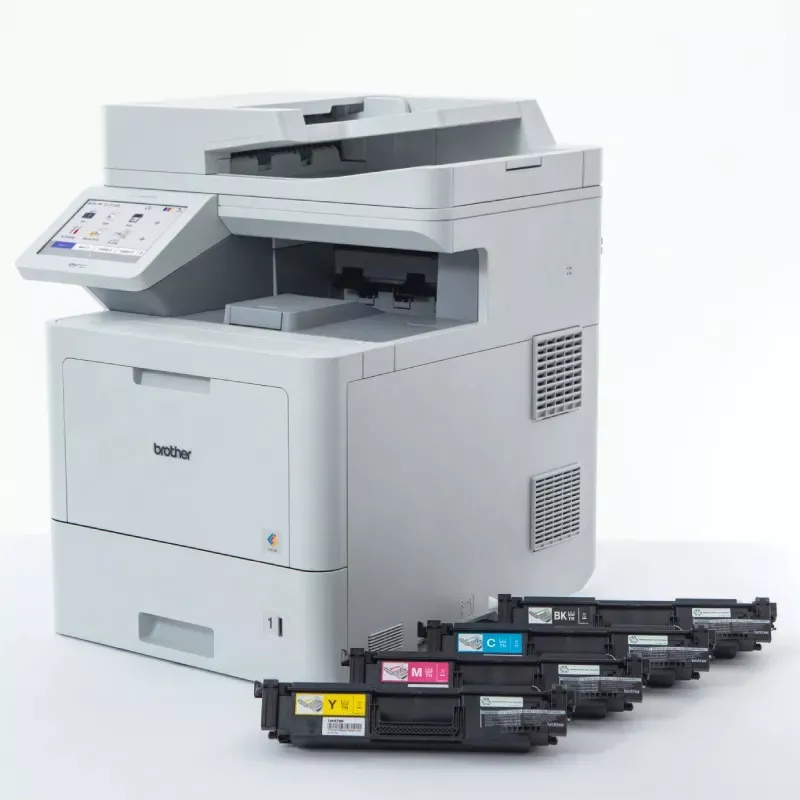

With the included Brother toner cartridges, get yields up to 9,000** pages for black and 6,500** pages for color. Cost has never been more efficient.
WORKFLOW INTEGRATIONS
Utilize software integration options for print and document management requirements, tailored to your business needs. Contact our team to find out more.
DESIGNED FOR WORKGROUPS
Built-in cloud apps help your team share documents by directly digitising to OneDrive, Google Drive or Dropbox.
Our user interface is designed for teams - users can personalize their own buttons for quick and easy access to frequently used features like emailing a document or scanning to cloud.
INTEGRATED SECURITY

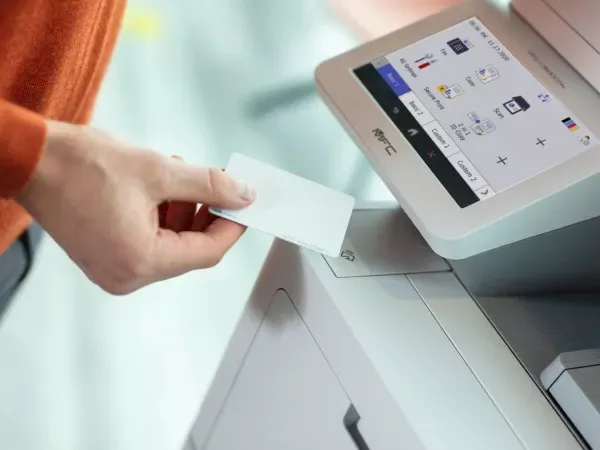

Ready to integrate with your user groups with Active Directory and LDAP support, combined with NFC authentication to manage access within in your organisation.
IPSec support for data encryption and ensuring your organisation information remains confidential.
LARGE PAPER CAPACITY

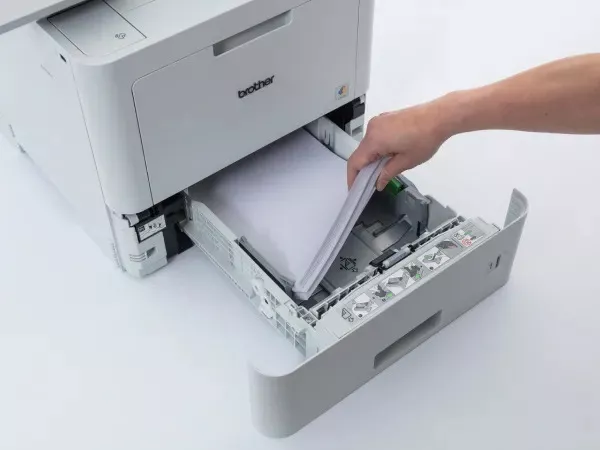

The addition of the 520 sheet paper tray means that you'll spend less time restocking paper, and more time on business critical tasks.
The multi purpose tray gives you the flexibility of printing on thicker paper up to 230gsm and print envelopes.
Specifications
Basic Specs
Functions
Fax, Print, Scan, Copy
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
503 mm × 541 mm × 586 mm
Weight
30.1 kg
Print Speed
Up to 42 (Mono)/ Up to 42 (Colour) sides/minute (Letter)
Up to 40 (Mono / Up to 40 (Colour) sides/minute (A4)
Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env.Thin, Env.Thick, Glossy Paper
Paper Size
A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch
Maximum Paper Capacity
Up to 1,620 sheets of 80 gsm plain paper
Warranty
HK Region standard 2 years onsite warranty service (completed warranty registration within 60 days of purchased) / Macau Region 2 years bring-in warranty service (completed warranty registration within 60 days of purchased)
Resolution
Up to 600 x 600 dpi, 2,400 dpi class (2400 x 600) quality
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Letterhead, Colored Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Glossy Paper
2-Sided (Duplex) - Paper Size
A4, , Letter, Legal, Mexico Legal, India Legal, Folio, A4 Short (270mm Paper)
Paper handling
Tray #1 - Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper, Thick Paper, Thicker Paper
Tray #1 - Maximum Paper Weight
60 to 230 gsm (16 to 61 lb.)
Tray #1 - Maximum Paper Capacity
Up to 520 sheets of 80 gsm plain paper
Tray #1 - Paper Size
A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Tray #2 - Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper
Tray #2 - Maximum Paper Weight
60 to 105 gsm (16 to 28 lb.)
Tray #2 - Paper Size
A4, Letter, B5 (JIS), A5, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Tray #2 - Maximum Paper Capacity
LT-330CL: Up to 250 sheets of 80 gsm plain paper
LT-340CL: Up to 500 sheets of 80 gsm plain paper
Multi-purpose Tray - Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env.Thin, Env.Thick, Glossy Paper
Multi-purpose Tray - Maximum Paper Weight
60 to 230 gsm (16 to 61 lb)
Multi-purpose Tray - Paper Size
Width: 76.2 to 215.9 mm (4.1" to 8.5")
Length: 127 to 355.6 mm (5" to 14")
Envelope: COM-10, DL, C5, Monarch
Multi-purpose Tray - Maximum Paper Capacity
Up to 100 sheets of 80 gsm plain paper
Envelope: 15 envelopes
Automatic Document Feeder (ADF) Maximum Paper Capacity
Up to 100 sheets
Paper Output
Face Down Output Tray: Up to 250 sheets of 80 gsm Plain Paper
Face Up Output Tray: Up to 1 sheet
Copy
Colour / Monochrome
Yes
Yes
Multiple Copies
Up to 999 pages
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Print: Up to 600 x 600 dpi
Scan
Colour / Monochrome
Yes/ Yes
Resolution - Interpolated
Up to 19,200 × 19,200 dpi
Resolution - Scanner Glass
Up to 600 × 600 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 600 × 600 dpi
Document Scanning Width / Length - Scanner Glass
Width: Up to 204 mm (A4) / Up to 210 mm (Letter)
Document Scanning Width / Length - Automatic Document Feeder (ADF)
Width: Up to 204 mm (A4) / Up to 210 mm (Letter)
Fax
Compatibility
ITU-T Super Group 3
Modem Speed
33.6 Kbps
Memory Transmission
Up to 500 pages (ITU-T Test Chart, JBIG)
Fax Forwarding
Yes
Out of Paper Reception
Up to 500 pages (ITU-T Test Chart, JBIG)
PC Fax - Sending
Yes
PC Fax - Receiving
Yes (Windows® only)
Connectivity
WiFi Direct
Yes
Connectivity
Hi-SpeedUSB2.0, 10Base-T/100Base-TX/1000Base-T, IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct), NFC
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) (Wi-Fi Direct supports WPA2-PSK (AES) only)
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
7.0" (176.1 mm) TFT Colour Touchscreen LCD
Memory Capacity
2 GB
Operation
Power Source
220 V to 240 V AC 50/60 Hz
Power Consumption - Printing
Approximately 770 W
Power Consumption - Ready
Approximately 85 W
Power Consumption - Sleep
Approximately 16.8 W
Power Consumption - Power Off
Approximately 0.04 W
Noise Level
56.5 dB (A)
Supported Operating Systems
Supported OS
Widows 7 / 8.1 / 10, Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 / 2019
Software and Apps
Mobile Apps
Brother Mobile Connect
