QL Series PC Connected

QL820NWB
HK$2,258.00
  • Professional wired and wireless label printer
Quantity
Details
Database File Compatibility Print Speed Max Resolution (dpi)
csv, txt, mdb, xls, Microsoft SQL Server Database Increase productivity and efficiency with a fast print speed of 176mm/sec 300 x 600 (Superfine mode)
The versatile QL-820NWB offers easy to use software and integration with Microsoft Office Applications, for all labelling requirements.

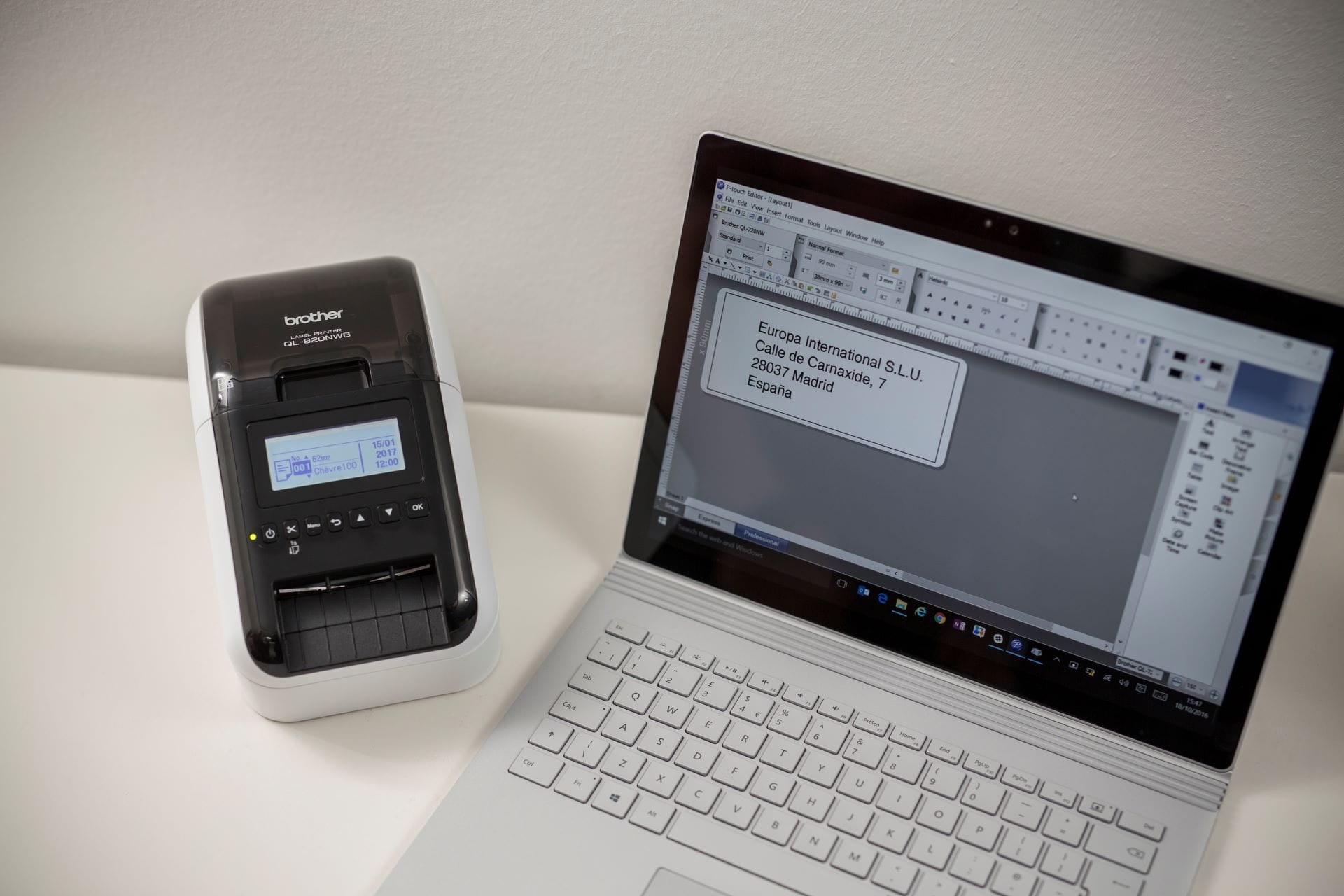

By connecting directly to your PC, the QL-820NWB via Wired or Wireless LAN enables you to print high resolution photos, logos and barcodes in one simple step by using the professional label design software provided.

IIt includes a built-in automatic cutter, so you can create professional-looking mailing labels, CD labels, file folder labels as well as durable continuous-length labels to make banners and signs for any task, however big or small.

Main Features
Print black and red* text without link Draw attention to important information by including red as well as black on your labels - ideal for highlighting use-by dates, allergens and other critical informaition.

* Requires DK22251 continuous roll to print in black and red.
Fast Print Speed If you are printing one or several labels at a time, the QL-820NWB will have them ready in just a few seconds at 176mm/sec.
Cost Saving Cost effectively produce professional employee name badge labels on demand. Virtually eliminate the costs associated with replacing permanent name badges.
High Performance Labeller Generate durable, printed office labels for file folders, file drawers and more in a second.
Brother iPrint & Label With the free Brother iPrint & Label app, you are now able to quickly and easily create and print labels directly from your iOS or Android device to your Brother QL-820NWB. Available through your device’s app store.
Specification
General
LCD 320 x 120 dot LCD display
Cutter Auto
Types of Tape DK Tape
Tape Size (mm) Up to 62mm
Power Source 100-240V AC external adaptor, Li-ion Battery
Connection Type USB 2.0 High Speed, Bluetooth 2.1+EDR,10BASE-T/100BASE-TX LAN, WiFi
No of Built-In fonts type All True Type Fonts Installed
Font Sizes According to PC
Maximum label length 3 feet (1000mm)
Maximum tape width 2.4 (62mm)
Symbols for windows ( No. of Clip arts in P-touch Editor) All True Type Symbols installed
Bar-codes types CODE39, CODE128, UCC/EAN128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13, EAN8, ISBN-2(EAN13 AddOn2), ISBN-5(EAN13 AddOn5), Laser Barcode, POSTNET, RSS(RSS14 Standard, RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omni, RSS Limited, RSS Expanded, RSS Expanded Stacked), PDF417(Standard, Truncate, Micro), QR code(Model1, Model2, Micro), Data Matrix(ECC Square, ECC Rectangular),
MaxiCode(Model2, Model3, Model4, Model5)
RSS symbols / CODE93 / POSTNET / UPC/EAN EXTENSION / MSI / QR Code (model 1, model 2, micro QR)PDF417 (Standard, Truncate, MicroPDF417) / Data Matrix(ECC200 Square, ECC200 Rectangular) / MaxiCode / Aztec
Date/Time Stamp PC Generated
Print
Print Speed Max. 176 mm/sec, Max. 110 labels/min. (Standard Address Labels)
Print Resolution Max. 300 x 600 dpi
Maximum Print Width 2.3 (58mm)
Dimension / Weight
Dimensions (mm) 125 x 234 x 145mm
Weight 1.16kg
Software
Operating System Windows Vista®/ Windows® 7 / Windows® 8
Windows® 8.1 / Windows® 10 / Windows Server® 2008 / 2008 R2 / Windows® Server 2012 / 2012 R2

macOS X v 10.10 / 10.11 /
For the latest printer driver, please check at support center https://support.brother.com or contact us for inquiry
Microsoft Word/Outlook/Excel Add-in Yes
Database file compatibility csv, txt, mdb, xls, xlsx, xlsm, accdb, Microsoft SQL Server Database

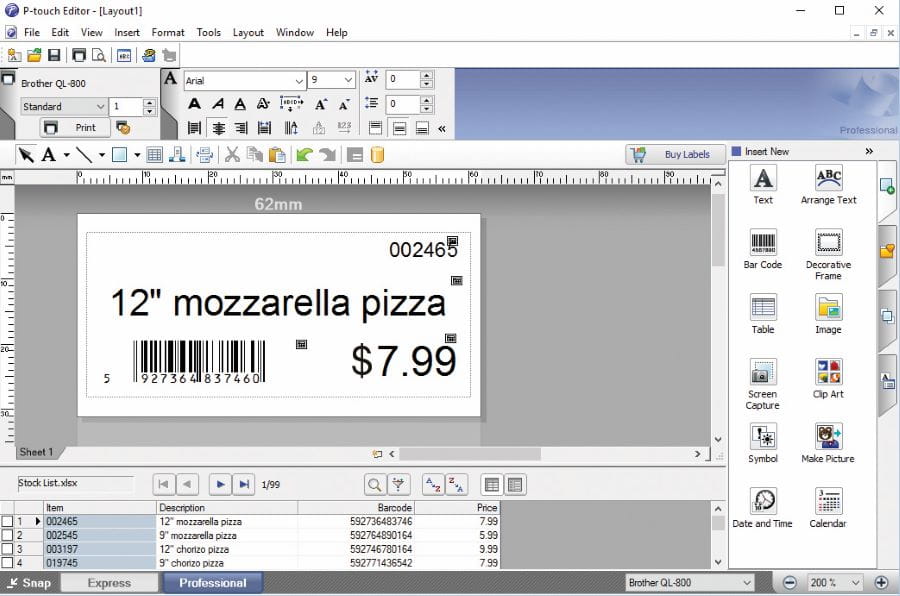

Software P-touch Editor for Windows / Mac
Support
Warranty 24 months Carry-in Warranty
Supplies And Accessories
Cleaning Tape
    Quantity Unit Price HK$62.00
DK Continuous Length Tape
    Quantity Unit Price HK$430.00
    Quantity Unit Price HK$155.00
    Quantity Unit Price HK$95.00
    Quantity Unit Price HK$155.00
    Quantity Unit Price HK$310.00
    Quantity Unit Price HK$200.00
    Quantity Unit Price HK$430.00
DK Die-Cut Label
    Quantity Unit Price HK$78.00
    Quantity Unit Price HK$118.00
    Quantity Unit Price HK$65.00
    Quantity Unit Price HK$65.00
    Quantity Unit Price HK$145.00
    Quantity Unit Price HK$95.00
    Quantity Unit Price HK$130.00
Labellers Accessories

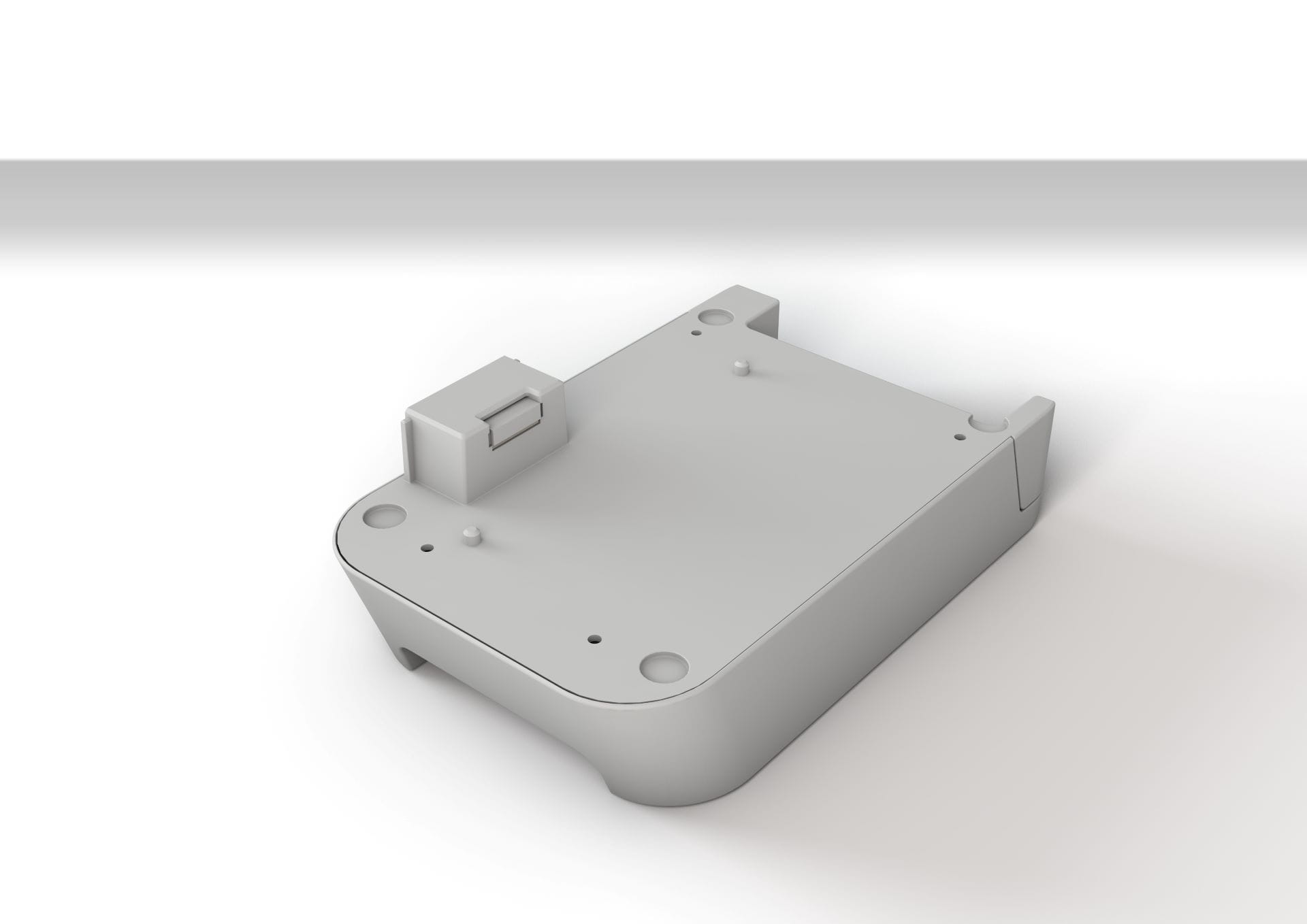

  • Li-ion Rechargeable Battery (For QL820NWB labeller only)
  • Available:
    Quantity Unit Price HK$980.00
Support & Downloads
Locate the latest drivers for your Brother product here. All software drivers, patches and network firmware to support your Brother products are located on the global Brother support site. PLEASE NOTE: To download Drivers and Software, you'll be taken to our international website in an external window. Simply close the browser window that displays the international site when you want to come back to this point.
